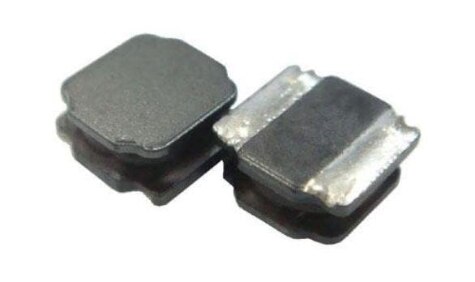

Specification	AWVS00808040220ML1

Current - Saturation (Isat)	1.7 A
Current Rating	2.1 A
DC Resistance (DCR)	85 mOhm
Height - Seated (Max)	0.165 in
Inductance	22 µH
Inductance Frequency - Test	100 kHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-40 °C
Package / Case	3131 (8080 Metric)
Package Name	3131
Ratings	AEC-Q200
Shielding	Shielded
Size / Dimension Length	0.315 in
Size / Dimension Width	0.315 in
Tolerance	20 %

AWVS Series

Part	Material - Core	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Height - Seated (Max)	Shielding	Package Name	Current Rating	Inductance Frequency - Test	Inductance	Tolerance	Current - Saturation (Isat)	DC Resistance (DCR)	Package / Case	Ratings	Size / Dimension Length	Size / Dimension Width	Supplier Device Package
Pulse Electronics AWVS004040121R5T00	Ferrite	125 °C	-40 °C	Surface Mount	0.051 in	Shielded	1616	1.4 A	100 kHz	1.5 µH	30 %	1.8 A	58 mOhm	1616 (4040 Metric)	AEC-Q200	0.157 in	0.157 in
Pulse Electronics AWVS004040123R3M00	Ferrite	125 °C	-40 °C	Surface Mount	0.051 in	Shielded	1616	1.2 A	100 kHz	3.3 µH	20 %	1.1 A	90 mOhm	1616 (4040 Metric)	AEC-Q200	0.157 in	0.157 in
Pulse Electronics AWVS00505040101M00	Ferrite	125 °C	-40 °C	Surface Mount	0.165 in	Shielded	2020	0.5 A	100 kHz	100 µH	20 %	0.6 mA	800 mOhm	2020 (5050 Metric)	AEC-Q200	0.197 in	0.197 in	2020
Pulse Electronics AWVS006060456R3M00	Ferrite	125 °C	-40 °C	Surface Mount	0.185 in	Shielded	2424	2.9 A	100 kHz	6.3 µH	20 %	4.9 A	40 mOhm	2424 (6060 Metric)	AEC-Q200	0.236 in	0.236 in
Pulse Electronics AWVS00606045221T00	Ferrite	125 °C	-40 °C	Surface Mount	0.185 in	Shielded	2424	0.34 A	100 kHz	220 µH	30 %	0.73 mA	1.3 Ohm	2424 (6060 Metric)	AEC-Q200	0.236 in	0.236 in
Pulse Electronics AWVS00606028150M00	Ferrite	125 °C	-40 °C	Surface Mount	0.087 in	Shielded	2424	1.6 A	100 kHz	15 µH	20 %	1.8 A	95 mOhm	2424 (6060 Metric)	AEC-Q200	0.236 in	0.236 in
Pulse Electronics AWVS004040124R7M00	Ferrite	125 °C	-40 °C	Surface Mount	0.051 in	Shielded	1616	1 A	100 kHz	4.7 µH	20 %	0.9 mA	110 mOhm	1616 (4040 Metric)	AEC-Q200	0.157 in	0.157 in
Pulse Electronics AWVS005050202R2M00	Ferrite	125 °C	-40 °C	Surface Mount	0.087 in	Shielded	2020	2.8 A	100 kHz	2.2 µH	20 %	3 A	35 mOhm	2020 (5050 Metric)	AEC-Q200	0.197 in	0.197 in	2020
Pulse Electronics AWVS005050205R6T00	Ferrite	125 °C	-40 °C	Surface Mount	0.087 in	Shielded	2020	1.8 A	100 kHz	5.6 µH	30 %	1.8 A	82 mOhm	2020 (5050 Metric)	AEC-Q200	0.197 in	0.197 in	2020
Pulse Electronics AWVS00404012100T00	Ferrite	125 °C	-40 °C	Surface Mount	0.051 in	Shielded	1616	0.81 A	100 kHz	10 µH	30 %	0.7 mA	190 mOhm	1616 (4040 Metric)	AEC-Q200	0.157 in	0.157 in
