Description
General part information

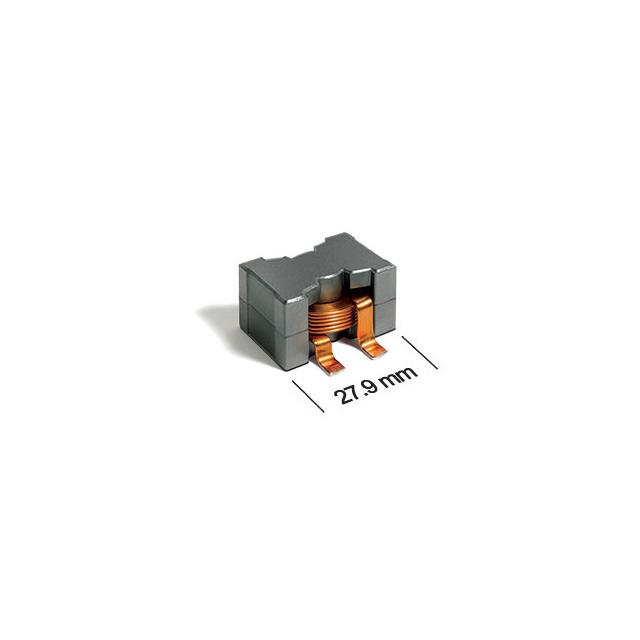

SER2915H-332KL
3.3 µH Shielded Wirewound Inductor 30 A 2.05mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SER2915H-332KL |
|---|---|
| Current - Saturation (Isat) | 62 A |
| Current Rating | 30 A |
| DC Resistance (DCR) (Max) | 2.05 mOhm |
| Frequency - Self Resonant | 30 MHz |
| Height - Seated (Max) | 0.605 in |
| Inductance | 3.3 µH |
| Inductance Frequency - Test | 500 kHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 1.098 in |
| Size / Dimension Width | 0.78 in |
| Tolerance | 10 % |
| Type | Wirewound |
