254-458
ActiveWAGO Corporation

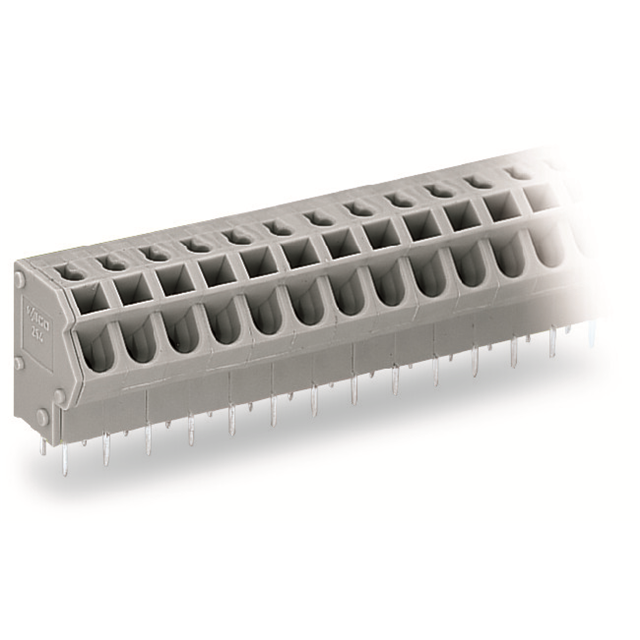

PCB TERMINAL BLOCK; 2.5 MM; PIN
254-458
ActiveWAGO Corporation
PCB TERMINAL BLOCK; 2.5 MM; PIN
Description
General part information
254-458
8 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.200" (5.08mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 254-458 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Gray |
| Contact Material | Electrolytic Copper |
| Current | 10 A |
| Housing Material | Nylon 6/6, Polyamide, PA66 |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 5.08 mm |
| Plating | Tin Plated |
| Positions Per Level | 8 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 20.5 AWG |
| Wire Gauge (AWG) (Min) | 12 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
