MS3126F-24-61S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 61POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MS3126F-24-61S
ActiveAmphenol Industrial Operations
CONN PLUG FMALE 61POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MS3126F-24-61S | MS3126F24 Series |
|---|---|---|
| - | - | |
| Applications | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military | Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military |
| Backshell Material, Plating | Aluminum, Olive Drab Chromate over Cadmium | Aluminum, Olive Drab Chromate over Cadmium |
| Color | Olive Drab | Olive Drab |
| Connector Type | Female Sockets, Plug | Female Sockets, Plug |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Grade | Military | Military |
| Ingress Protection | Environment Resistant | Environment Resistant |
| Insert Material | Neoprene | Neoprene |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 61 | 61 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | N | N |
| Primary Material | Metal | Metal |
| Qualification | MIL-DTL-26482 Series I | MIL-DTL-26482 Series I |
| Shell Finish | Olive Drab Chromate over Cadmium | Olive Drab Chromate over Cadmium |
| Shell Material | Aluminum | Aluminum |
| Shell Size - Insert [Max] | 61 | 61 |
| Shell Size - Insert [Min] | 24 | 24 |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 185.63 | |
| 10 | $ 145.15 | |||
| 25 | $ 132.37 | |||
| 50 | $ 123.76 | |||
MS3126F24 Series
PLUG
| Part | Ingress Protection | Backshell Material, Plating | Termination | Shell Material | Shell Finish | Contact Material | Qualification | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Type | Mounting Type | Primary Material | Grade | Applications | Contact Finish - Mating | Number of Positions | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Fastening Type | Orientation | Features | Insert Material | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Industrial Operations MS3126F24-61P(LC) | ||||||||||||||||||||||||
Amphenol Industrial Operations MS3126F-24-61S | Environment Resistant | Aluminum, Olive Drab Chromate over Cadmium | Crimp | Aluminum | Olive Drab Chromate over Cadmium | Copper Alloy | MIL-DTL-26482 Series I | -55 °C | 125 °C | Olive Drab | Female Sockets, Plug | Free Hanging (In-Line) | Metal | Military | Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military | Gold | 61 | 61 | 24 | Bayonet Lock | N | Backshell, Cable Clamp, Coupling Nut | Neoprene | Unshielded |
Description
General part information
MS3126F24 Series

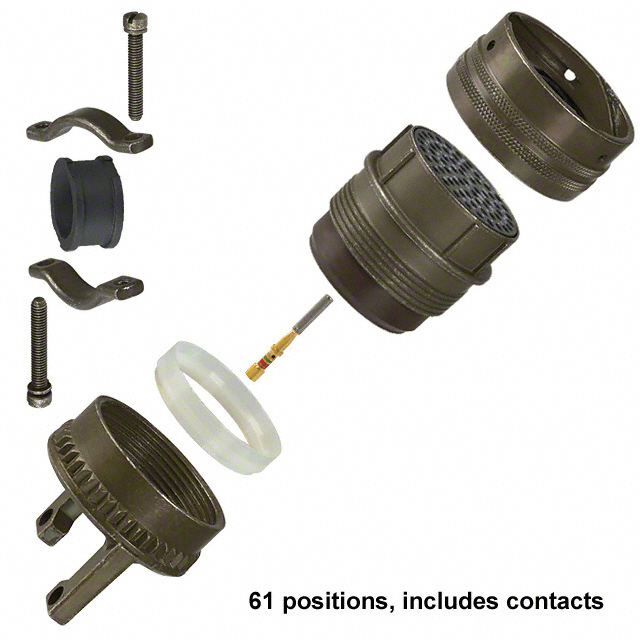

61 Position Circular Connector Plug, Female Sockets Crimp
Documents
Technical documentation and resources
