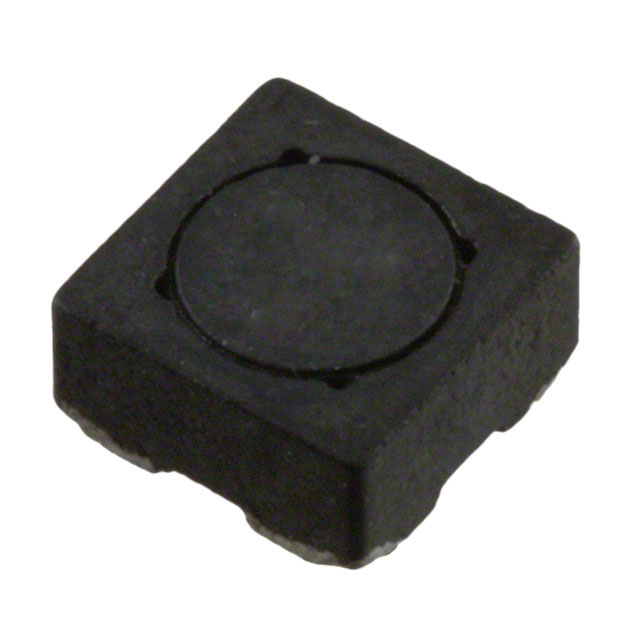

SDQ25-220-R
ActiveEaton - Electronics Division
INDUCT ARRAY 2 COIL 22.47UH SMD
SDQ25-220-R
ActiveEaton - Electronics Division
INDUCT ARRAY 2 COIL 22.47UH SMD
Description
General part information
SDQ25-220-R
Shielded 2 Coil Inductor Array 89.89 µH Inductance - Connected in Series 22.47 µH Inductance - Connected in Parallel 243.1mOhm DC Resistance (DCR) - Parallel 1.01 A Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | SDQ25-220-R |
|---|---|
| Current Rating - Parallel | 1.01 A |
| Current Rating - Series | 507 mA |
| Current Saturation - Parallel | 849 mA |
| Current Saturation - Series | 425 mA |
| DC Resistance (DCR) - Parallel | 243.1 mOhm |
| DC Resistance (DCR) - Series | 972.4 mOhm |
| Height | 0.098 in |
| Inductance - Connected In Parallel | 22.47 µH |
| Inductance - Connected In Series | 89.89 µH |
| Mounting Type | Surface Mount |
| Number of Coils | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.205 in |
| Size / Dimension Width | 0.205 in |
| Tolerance | 20 % |
