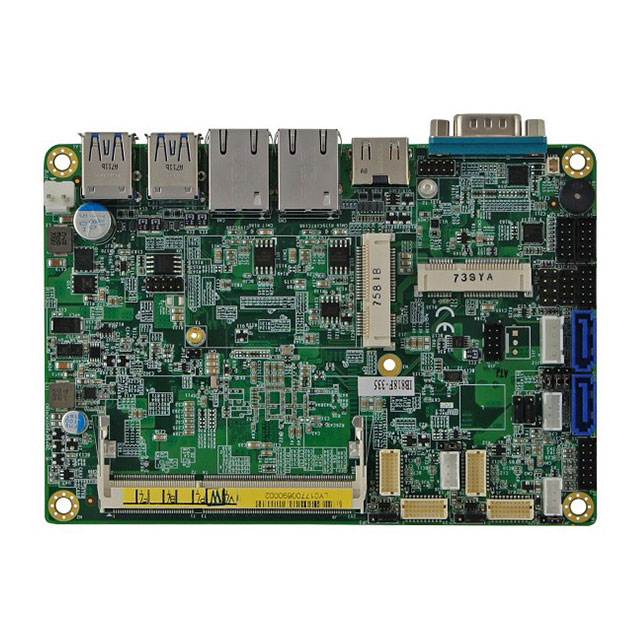

IB818F-335
ActiveiBASE Technology
3.5" INTEL CELERON N3350 DC SOC
IB818F-335
ActiveiBASE Technology
3.5" INTEL CELERON N3350 DC SOC
Description
General part information
IB818F-335
Single Board Computer 1.1GHz, 2.4GHz 1 Core 8GB/0GB RAM Intel Celeron N3350
Technical Specifications
Parameters and characteristics for this part
| Specification | IB818F-335 |
|---|---|
| Core Processor | Intel Celeron N3350 |
| Ethernet Interface | GbE |
| Ethernet Ports | 2 |
| Expansion Site/Bus | Mini-PCIe |
| Form Factor | SBC |
| Form Factor Size | 3.5 in |
| Number of Cores | 1 |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| RAM Capacity | 8 GB |
| RAM Installed | 0 GB |
| Serial Interface Count | 4 |
| Size / Dimension Length | 4.02 in |
| Size / Dimension Width | 5.79 in |
| Speed | 1.1 GHz, 2.4 GHz |
| Storage Interface | mSATA, SATA III |
| Supported Serial Standards | RS-485, RS-232, RS-422 |
| USB | USB 3.0, USB 2.0 |
| USB 2.0 Count | 2 count |
| USB 3.0 Count | 4 count |
| Video Outputs | eDP, VGA, Display Port, HDMI, LVDS |
| Watchdog Timer | Yes |
