Description
General part information

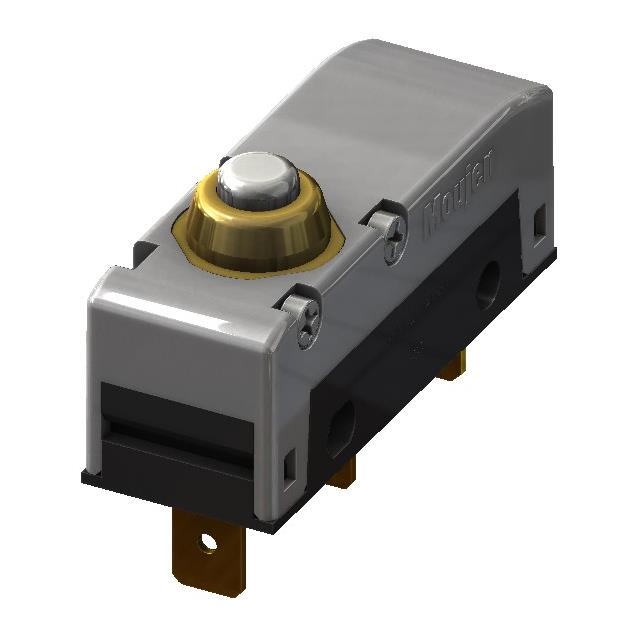

MJ3-521103
Switch SPDT Chassis Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | MJ3-521103 |
|---|---|
| Actuator Type | Round (Pin Plunger) |
| Circuit | SPDT |
| Current Rating | 400 mA, 5 A |
| Differential Travel (Linear) | 0.002 in |
| Electrical Life (Cycles) | 500000 |
| Ingress Protection | IP40 |
| Mechanical Life (Cycles) | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 400 gf |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -25 °C |
| Overtravel (Linear) | 0.079 in |
| Pretravel (Length) | 0.02 in |
| Quick Connect Size (0.250") | 0.25 in |
| Release Force | 300 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 VDC |
