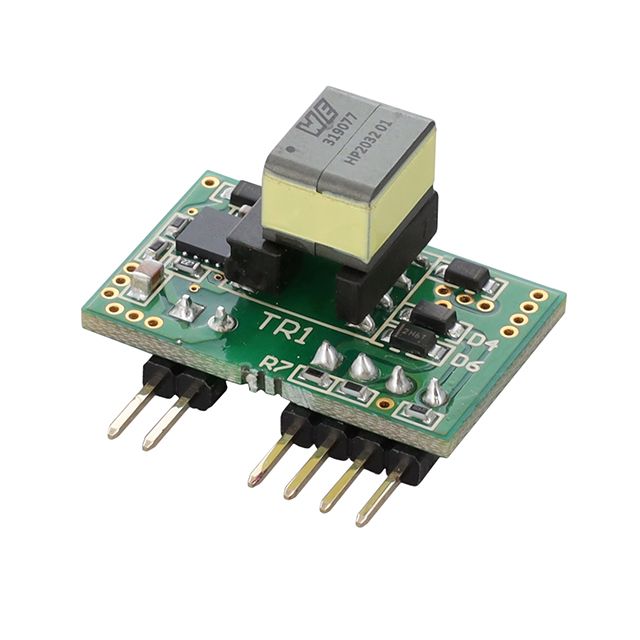

SECO-LVDCDC3064-IGBT-GEVB
ObsoleteON Semiconductor
POWER MANAGEMENT IC DEVELOPMENT TOOLS ISOLATED IGBT GATE DRIVER SUPPLY +15 V / -7.5 V / 7.5 V WITH AUTOMOTIVE QUALIFIED NCV3064 CONTROLLER
SECO-LVDCDC3064-IGBT-GEVB
ObsoleteON Semiconductor
POWER MANAGEMENT IC DEVELOPMENT TOOLS ISOLATED IGBT GATE DRIVER SUPPLY +15 V / -7.5 V / 7.5 V WITH AUTOMOTIVE QUALIFIED NCV3064 CONTROLLER
Description
General part information
SECO-LVDCDC3064-IGBT-GEVB
NCV3064 - DC/DC Isolated Power Supply 3, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | SECO-LVDCDC3064-IGBT-GEVB |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Isolated Output Count | 3 |
| Main Purpose | DC/DC Isolated Power Supply |
| Output Type | Isolated |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 3 |
| Utilized IC / Part | NCV3064 |
| Voltage - Input (Maximum) | 18 V |
| Voltage - Input (Minimum) | 6 V |
| Voltage - Output | 7.5 V, -7.5 V, 15 V |
