24RC4S06 NA199

Active

ALPHA WIRE

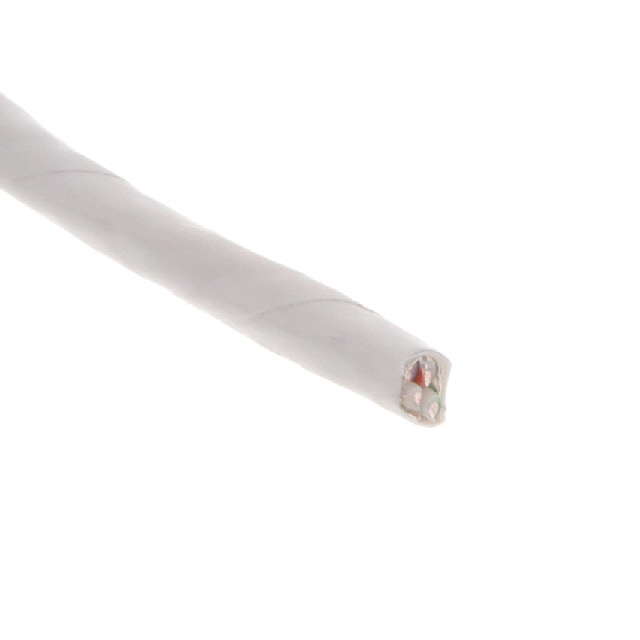

CABLE 4COND 24AWG NATURAL 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 4COND 24AWG NATURAL 1000'

Technical Specifications

Parameters and characteristics for this part

Specification	24RC4S06 NA199

Cable Type	Multi-Conductor
Conductor Insulation	Polytetrafluoroethylene (PTFE)
Conductor Material	Copper, Silver Coated
Jacket (Insulation) Diameter [diameter]	0.142 in
Jacket (Insulation) Diameter [diameter]	3.61 mm
Jacket (Insulation) Material	Polytetrafluoroethylene (PTFE)
Jacket (Insulation) Thickness	0.0098 in
Jacket (Insulation) Thickness	0.25 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Shield Coverage	85 %
Shield Material	Copper, Silver Coated
Shield Type	Braid
Voltage	600 V
Wire Gauge	24 AWG

CABLE 4COND 24AWG NATURAL 1000'

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Wire Gauge	Conductor Material	Jacket Color	Length	Length	Shield Coverage	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Conductors	Shield Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Voltage	Conductor Insulation	Jacket (Insulation) Material
ALPHA WIRE 24RC4S06 NA199	0.142 in	3.61 mm	24 AWG	Copper, Silver Coated	Natural	1000 ft	304.8 m	85 %	Copper, Silver Coated	-55 °C	200 °C	4	Braid	0.0098 in	0.25 mm	Multi-Conductor	600 V	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

4 Conductor Multi-Conductor Cable Natural 24 AWG Braid 1000.0' (304.8m)
