NPIM74PA6R8MTRQYF
ActiveNIC Components Corp
IND SMT 7.3X6.6X2.86.8UH4.5A6
NPIM74PA6R8MTRQYF
ActiveNIC Components Corp
IND SMT 7.3X6.6X2.86.8UH4.5A6
Description
General part information
NPIM74PA6R8MTRQYF

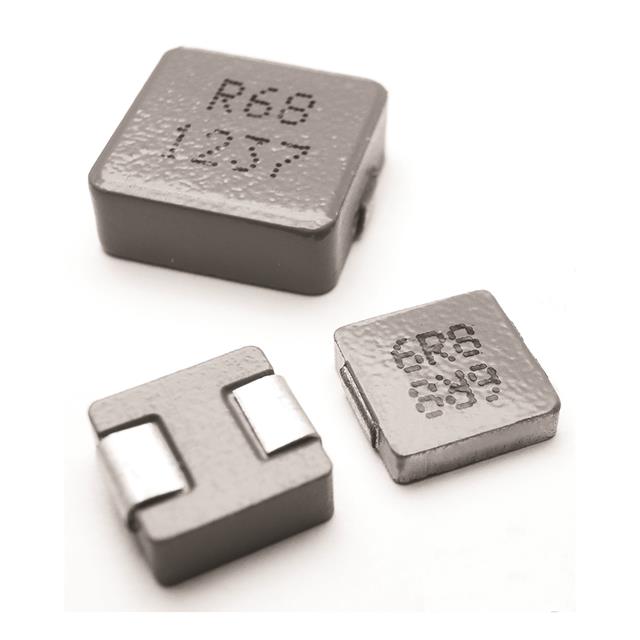

6.8 µH Shielded Inductor 60mOhm High Current
Technical Specifications
Parameters and characteristics for this part
| Specification | NPIM74PA6R8MTRQYF |
|---|---|
| Current - Saturation (Isat) | 8 A |
| DC Resistance (DCR) | 60 mOhm |
| Features | High Current |
| Height - Seated (Max) | 0.11 in |
| Inductance | 6.8 µH |
| Material - Core | Metal Composite |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Ratings | AEC-Q200 |
| Shielding | Shielded |
| Size / Dimension Length | 0.287 in |
| Size / Dimension Width | 0.26 in |
