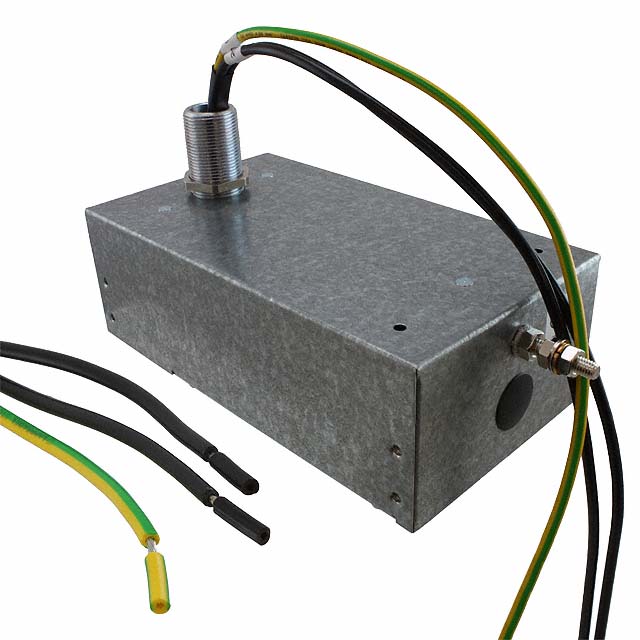

B84299D6300B000
ActiveEPCOS - TDK Electronics
LINE FILTER 250VAC 30A CHASSIS
B84299D6300B000
ActiveEPCOS - TDK Electronics
LINE FILTER 250VAC 30A CHASSIS
Description
General part information
B84299D6300B000
Single Phase EMC/EMI Line Filter 30 A 250V 50/60Hz Two Stage Threaded Post (M4), Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | B84299D6300B000 |
|---|---|
| Applications | General Purpose |
| Approval Agency | cUL, UL |
| Configuration | Two Stage |
| Current | 30 A |
| Filter Type | Single Phase |
| Frequency - Operating | 60Hz, 50Hz |
| Frequency - Operating (Max) | 60 Hz |
| Frequency - Operating (Min) | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Termination Style | Threaded Post (M4), Wire Leads |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
