808-AG11D
ObsoleteTE Connectivity AMP Connectors

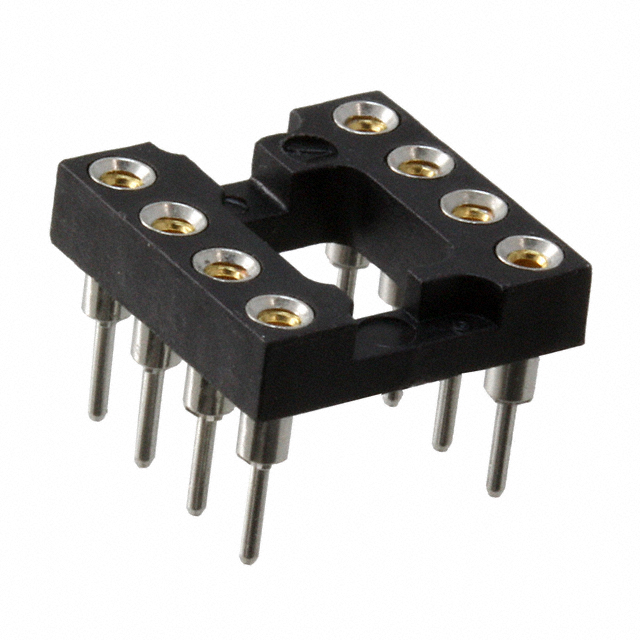

CONN IC DIP SOCKET 8POS GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
808-AG11D
ObsoleteTE Connectivity AMP Connectors
CONN IC DIP SOCKET 8POS GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 808-AG11D | 808 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Tin-Lead, Gold |
| Contact Finish - Post | Tin-Lead | Tin-Lead, Gold |
| Contact Finish Thickness - Post | 2.03 µm | 0.127 - 2.03 µm |
| Contact Finish Thickness - Post | 80 µin | 5 - 80 µin |
| Contact Material - Mating | Copper Alloy | Copper Alloy, Beryllium Copper |
| Contact Material - Post | - | Copper |
| Contact Material - Post [custom] | Copper Alloy | Copper Alloy |
| Contact Resistance | 10 mOhm | 10 mOhm |
| Current Rating (Amps) | - | 3 A |
| Features | Open Frame | Open Frame |
| Housing Material | Polyester | Polyester, Polycyclohexylenedimethylene Terephthalate (PCT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions or Pins (Grid) | 8 | 8 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Pitch - Post | 2.54 mm | 2.54 mm |
| Pitch - Post | 0.1 in | 0.1 in |
| Termination | Solder | Solder |
| Termination Post Length | 3.18 mm | 3.18 mm |
| Termination Post Length | 0.125 in | 0.125 in |
| Type | 0.3 " | 0.3 " |
| Type | 7.62 mm | 7.62 mm |
| Type | DIP | DIP |
808 Series
CONN IC DIP SOCKET 8POS TIN-LEAD
| Part | Type | Type | Type | Housing Material | Contact Finish - Mating | Contact Resistance | Pitch - Mating | Pitch - Mating | Pitch - Post | Pitch - Post | Mounting Type | Features | Contact Finish - Post | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions or Pins (Grid) | Termination | Material Flammability Rating | Termination Post Length | Termination Post Length | Contact Material - Mating | Contact Material - Post [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 808-AG12D | 0.3 " | 7.62 mm | DIP | Polyester | Tin-Lead | 10 mOhm | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole | Open Frame | Tin-Lead | 3 A | 105 ░C | -55 °C | 8 | Solder | UL94 V-0 | 3.18 mm | 0.125 in | Copper Alloy | Copper Alloy | |||
TE Connectivity AMP Connectors 808-AG10D | 0.3 " | 7.62 mm | DIP | Polyester | Gold | 10 mOhm | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole | Open Frame | Gold | 3 A | 105 ░C | -55 °C | 8 | Solder | UL94 V-0 | 3.18 mm | 0.125 in | Copper Alloy | Copper Alloy | 5 µin | 0.127 µm | |
TE Connectivity AMP Connectors 808-AG11D | 0.3 " | 7.62 mm | DIP | Polyester | Gold | 10 mOhm | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole | Open Frame | Tin-Lead | 105 ░C | -55 °C | 8 | Solder | UL94 V-0 | 3.18 mm | 0.125 in | Copper Alloy | Copper Alloy | 80 µin | 2.03 µm | ||
TE Connectivity AMP Connectors 808-AG11D-LF | 0.3 " | 7.62 mm | DIP | Polycyclohexylenedimethylene Terephthalate (PCT), Polyester | Gold | 10 mOhm | 0.1 in | 2.54 mm | 2.54 mm | 0.1 in | Through Hole | Open Frame | Gold | 105 ░C | -55 °C | 8 | Solder | UL94 V-0 | 3.18 mm | 0.125 in | Beryllium Copper | 25 µin | 0.63 µm | Copper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
808 Series
8 (2 x 4) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
