NHD-3.5-320240MF-ASXN#-CTP

Obsolete

Newhaven Display Intl

3.5" SUNLIGHT READABLE TFT CAPAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNHD 3.5 IPS TFT Transition Guide LCD Safe Handling Procedure +2

NHD-3.5-320240MF-ASXN#-CTP

Obsolete

Newhaven Display Intl

3.5" SUNLIGHT READABLE TFT CAPAC

Deep-Dive with AI

DocumentsNHD 3.5 IPS TFT Transition Guide LCD Safe Handling Procedure +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	NHD-3.5-320240MF-ASXN#-CTP	NHD-3.5 Series

	-	-
Accessory Type	-	Interface Board
Backlight	LED - White	Without Backlight, LED - White, LED
Contents	-	Cable(s), Board(s)
Controller Type	-	ST7272A, FT813, FT812, NV3035C, FT5426
Display Mode	Transmissive	Transmissive
Display Type	TFT - Color	TFT - Color
Dot Pitch	-	0.22 mm
Dot Pitch	-	0.22 mm
Dot Pixels	-	QVGA
Dot Pixels [x]	320 pixels	320 pixels
Dot Pixels [y]	240 pixels	240 pixels
Dot Size	-	0.07 mm
Dot Size	-	0.21 mm
Embedded	-	False
For Use With/Related Products	-	Newhaven Resistive Touch Panel
Function	-	LCD Controller
Graphics Color	Green, Red, Blue	Green, Red, Blue, White
Interface	Parallel	Parallel, SPI, 24-Bit (RGB), Parallel/Serial, I2C
Interface	24 Bit	24 Bit
Primary Attributes	-	For TFT Displays, TFT, COG Graphic, and Character LCD Displays
Secondary Attributes	-	PAL, NTSC
Supplied Contents	-	Cable(s), Board(s)
Touchscreen	Capacitive	Resistive, Capacitive
Type	-	Display
Utilized IC / Part	-	TW8817, SSD1963
Viewing Area	-	54.6 mm
Viewing Area [x]	70.68 mm	70.08 - 72.8 mm
Viewing Area [y]	53.16 mm	52.56 - 72.1 mm

NHD-3.5 Series

LCD DISPLAY TFT 3.5" 320X240

Part	Backlight	Display Type	Dot Pixels	Dot Pixels [x]	Dot Pixels [y]	Interface	Interface	Controller Type	Graphics Color	Viewing Area [y]	Viewing Area [x]	Touchscreen	Display Mode	Type	Utilized IC / Part	Supplied Contents	Function	Contents	Secondary Attributes
Newhaven Display Intl NHD-3.5-320240MF-ESXN#	Without Backlight	TFT - Color
Newhaven Display Intl NHD-3.5-320240MF-ATXL#-3	Without Backlight	TFT - Color
Newhaven Display Intl NHD-3.5-320240JF-ASXP-T	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	Parallel	24 Bit	ST7272A	Blue, Green, Red	55.05 mm	71.82 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240MF-VIDEO BOARD V1.1														Display	TW8817	Board(s), Cable(s)	LCD Controller	Board(s), Cable(s)	NTSC, PAL
Newhaven Display Intl NHD-3.5-320240FT-CTXL-CTP	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	SPI		FT813	Blue, Green, Red	53.16 mm	70.68 mm	Capacitive	Transmissive
Newhaven Display Intl NHD-3.5-320240MB-ASXN-T	LED - White	TFT - Color		320 pixels	240 pixels	Parallel	24 Bit		Blue, Green, Red	52.56 mm	70.08 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240MB-ASXN-CTP	LED - White	TFT - Color		320 pixels	240 pixels	Parallel	24 Bit		Blue, Green, Red	52.56 mm	70.08 mm	Capacitive	Transmissive
Newhaven Display Intl NHD-3.5-320240FT-CTXL-T	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	SPI		FT812	Blue, Green, Red	55.05 mm	71.82 mm	Resistive	Transmissive
Newhaven Display Intl NHD-3.5-320240JF-ASXP	LED - White	TFT - Color	QVGA	320 pixels	240 pixels	Parallel	24 Bit	ST7272A	Blue, Green, Red	52.56 mm	70.08 mm		Transmissive
Newhaven Display Intl NHD-3.5-320240MF-ATXL-1AM	Without Backlight	TFT - Color

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

NHD-3.5 Series

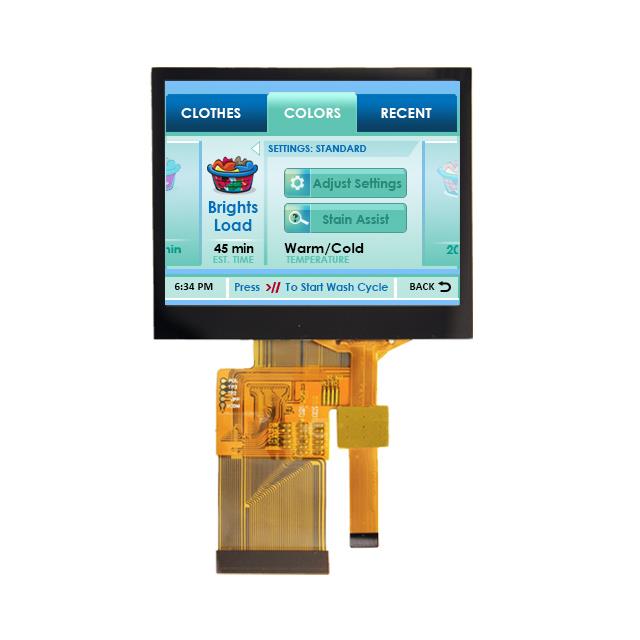

Capacitive Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 24-Bit (RGB) 3.5" (88.90mm) 320 x 240

NHD-3.5-320240MF-ASXN#-CTP

Deep-Dive with AI

NHD-3.5-320240MF-ASXN#-CTP

Deep-Dive with AI

Technical Specifications

NHD-3.5 Series

Pricing

Description

NHD-3.5 Series

Documents

NHD 3.5 IPS TFT Transition Guide

LCD Safe Handling Procedure

Datasheet

LCD Solvent Precautions

Technical Specifications

NHD-3.5 Series
