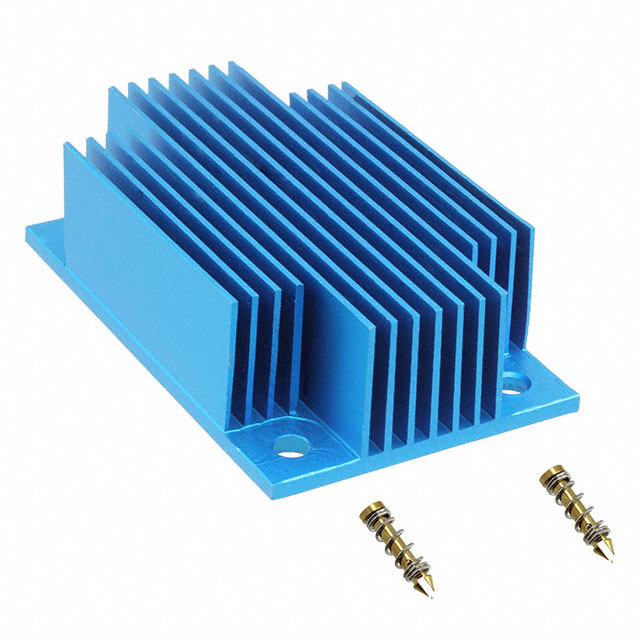

ATS-01B-33-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 57.9X36.83X17.78MM T766

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ATS-01B-33-C2-R0

Active

Advanced Thermal Solutions Inc.

HEATSINK 57.9X36.83X17.78MM T766

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	ATS-01B-33-C2-R0	ATS-01B Series

Attachment Method	Push Pin	Push Pin
Fin Height	-	0.23 - 1.378 in
Fin Height	-	5.84 - 35 mm
Fin Height [z]	17.78 mm	10 - 30 mm
Fin Height [z]	0.7 in	0.394 - 1.181 in
Length	2.28 "	0.984 - 2.756 in
Length	57.9 mm	25 - 70 mm
Length	-	1.181 - 2.362 in
Length	-	30 - 60 mm
Material	Aluminum	Aluminum
Material Finish	Blue Anodized	Blue Anodized
Package Cooled	ASIC, BGA, LGA, CPU	ASIC, BGA, LGA, CPU
Shape	Rectangular, Fins	Square, Fins, Rectangular, Fins
Thermal Resistance @ Forced Air Flow	17.42 °C/W	2.17 - 100 °C/W
Type	Top Mount	Top Mount
Width	36.83 mm	25 - 57.6 mm
Width	-	0.984 - 2.362 in
Width	-	40 - 60 mm
Width	-	1.181 - 2.267 in
Width	-	50 - 70 mm
Width [y]	1.45 "	1.45 - 2.756 in

ATS-01B Series

HEATSINK 25X25X35MM R-TAB T766

...

Part	Package Cooled	Width	Width [x]	Length	Length	Material Finish	Type	Shape	Attachment Method	Material	Fin Height	Fin Height	Thermal Resistance @ Forced Air Flow	Length [x]	Length [x]	Fin Height [z]	Fin Height [z]	Width [x]	Width	Width [y]	Width [y]
Advanced Thermal Solutions Inc. ATS-01B-78-C2-R0	ASIC, BGA, CPU, LGA	25 mm	0.984 in	25 mm	0.984 in	Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum	1.378 in	35 mm	7.71 °C/W
Advanced Thermal Solutions Inc. ATS-01B-60-C1-R0	ASIC, BGA, CPU, LGA	35 mm	1.378 in			Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum	1.378 in	35 mm	6.33 °C/W	1.378 in	35 mm
Advanced Thermal Solutions Inc. ATS-01B-197-C3-R0	ASIC, BGA, CPU, LGA	45 mm	1.772 in	45 mm		Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum			11.05 °C/W, 100 LFM	1.772 "		0.394 in	10 mm
Advanced Thermal Solutions Inc. ATS-01B-23-C1-R0	ASIC, BGA, CPU, LGA		2.362 in			Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum	0.59 "	15 mm	11.99 °C/W, 100 LFM	2.362 in	60 mm			60 mm
Advanced Thermal Solutions Inc. ATS-01B-36-C2-R0	ASIC, BGA, CPU, LGA	57.6 mm		36.83 mm	1.45 in	Blue Anodized	Top Mount	Rectangular, Fins	Push Pin	Aluminum	0.45 in	11.43 mm	14.82 °C/W, 100 LFM						2.267 in
Advanced Thermal Solutions Inc. ATS-01B-143-C2-R0	ASIC, BGA, CPU, LGA	30 mm				Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum			7.33 °C/W	1.181 in	30 mm	0.79 in	20 mm		1.181 in
Advanced Thermal Solutions Inc. ATS-01B-199-C3-R0	ASIC, BGA, CPU, LGA					Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum			15.95 °C/W, 100 LFM	1.969 in	50 mm					50 mm	1.969 in
Advanced Thermal Solutions Inc. ATS-01B-134-C2-R0	ASIC, BGA, CPU, LGA			70 mm	2.756 "	Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum	0.59 "	15 mm	4.44 °C/W, 100 LFM							70 mm	2.756 in
Advanced Thermal Solutions Inc. ATS-01B-186-C2-R0	ASIC, BGA, CPU, LGA		1.575 in			Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum	1.378 in	35 mm	2.8 °C/W, 100 LFM					40 mm
Advanced Thermal Solutions Inc. ATS-01B-13-C2-R0	ASIC, BGA, CPU, LGA					Blue Anodized	Top Mount	Fins, Square	Push Pin	Aluminum	0.59 "	15 mm	13.7 °C/W	1.969 in	50 mm					50 mm	1.969 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.11
		10	$ 5.94
		30	$ 5.81

Description

General part information

ATS-01B Series

Heat Sink Assorted (BGA, LGA, CPU, ASIC...) Aluminum Top Mount
