Description
General part information

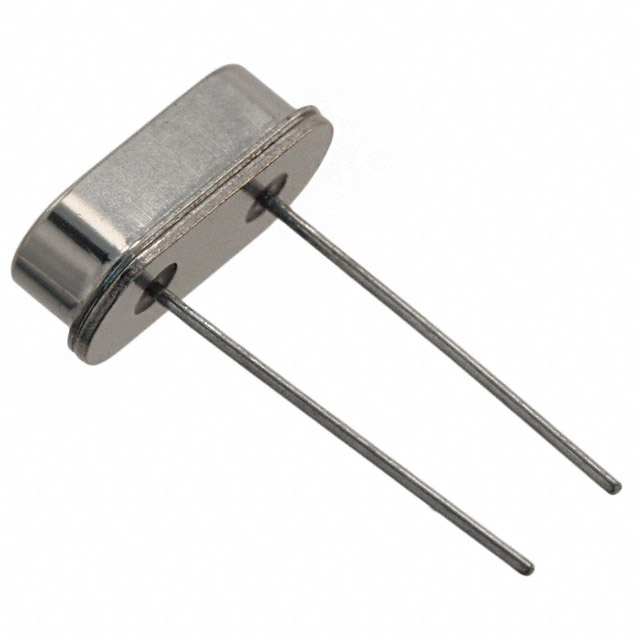

ECS-060-20-4X-DU
6 MHz ±30ppm Crystal 20pF 100 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-060-20-4X-DU |
|---|---|
| ESR (Equivalent Series Resistance) | 100 Ohm |
| Frequency | 6 MHz |
| Frequency Stability | 100 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 0.138 in |
| Load Capacitance | 20 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | HC-49/US |
| Size / Dimension Length | 0.447 in |
| Size / Dimension Width | 0.183 in |
| Type | MHz Crystal |
