EKY-100ELL103MMP1S

Active

Chemi-Con

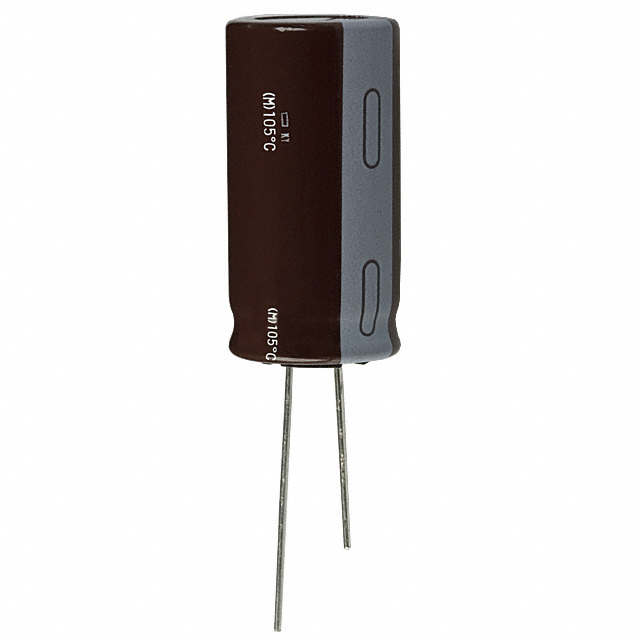

CAP ALUM 10000UF 20% 10V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKY-100ELL103MMP1S

Active

Chemi-Con

CAP ALUM 10000UF 20% 10V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKY-100ELL103MMP1S	EKY-100E Series

Applications	General Purpose	General Purpose
Capacitance	10000 µF	5.6 - 10000 µF
Height - Seated (Max)	-	1.634 - 21.5 mm
Height - Seated (Max)	-	0.492 - 0.846 in
Height - Seated (Max)	-	41.5 mm
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max] [z]	37 mm	13 - 37 mm
Height - Seated (Max) [Max] [z]	1.457 in	0.512 - 16.51 "
Impedance	14 mOhms	14 - 580 mOhms
Lead Spacing	7.5 mm	2 - 7.5 mm
Lead Spacing	0.295 in	0.079 - 0.295 in
Lifetime @ Temp.	8000 Hrs	4000 - 8000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	4.22 A	1.05 - 865 A
Ripple Current @ Low Frequency	3.587 A	1.425 - 726 A
Size / Dimension [diameter]	0.709 "	0.197 - 0.709 in
Size / Dimension [diameter]	18 mm	5 - 18 mm
Tolerance	20 %	20 %
Voltage - Rated	10 V	10 V

EKY-100E Series

CAP ALUM 2200UF 20% 10V RADIAL

Part	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lifetime @ Temp.	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Ripple Current @ Low Frequency	Capacitance	Impedance	Polarization	Tolerance	Lead Spacing	Lead Spacing	Package / Case	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Chemi-Con EKY-100ETD222MK20S	Through Hole	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	8000 Hrs	0.492 in	12.5 mm	10 V	1.425 A	2200 µF	35 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can
Chemi-Con EKY-100ELL102MJ16S	Through Hole	-40 °C	105 ░C	General Purpose	17.5 mm	0.689 in	6000 Hrs	0.394 in	10 mm	10 V	726 mA	1000 µF	60 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can	1.21 A
Chemi-Con EKY-100ELL102MH20D	Through Hole	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	6000 Hrs	0.315 "	8 mm	10 V	630 mA	1000 µF	69 mOhms	Polar	20 %	3.5 mm	0.138 in	Radial, Can	1.05 A
Chemi-Con EKY-100ELL471MHB5D	Through Hole	-40 °C	105 ░C	General Purpose			6000 Hrs	0.315 "	8 mm	10 V	320 mA	470 µF	130 mOhms	Polar	20 %	3.5 mm	0.138 in	Radial, Can	640 mA	13 mm	0.512 "
Chemi-Con EKY-100ELL562ML25S	Through Hole	-40 °C	105 ░C	General Purpose			8000 Hrs	0.63 in	16 mm	10 V	2.4905 A	5.6 mF	21 mOhms	Polar	20 %	7.5 mm	0.295 in	Radial, Can	2.93 A	26.5 mm	1.043 in
Chemi-Con EKY-100ETD102MJ16S	Through Hole	-40 °C	105 ░C	General Purpose	17.5 mm	0.689 in	6000 Hrs	0.394 in	10 mm	10 V	726 mA	1000 µF	60 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can	1.21 A
Chemi-Con EKY-100ELL272MM15S	Through Hole	-40 °C	105 ░C	General Purpose			8000 Hrs	0.709 "	18 mm	10 V	1.6575 A	2700 µF	43 mOhms	Polar	20 %	7.5 mm	0.295 in	Radial, Can	2.21 A	16.5 mm	16.51 mm
Chemi-Con EKY-100ETD102MH20D	Through Hole	-40 °C	105 ░C	General Purpose	21.5 mm	0.846 in	6000 Hrs	0.315 "	8 mm	10 V	630 mA	1000 µF	69 mOhms	Polar	20 %	3.5 mm	0.138 in	Radial, Can	1.05 A
Chemi-Con EKY-100ELL472MK35S	Through Hole	-40 °C	105 ░C	General Purpose			8000 Hrs	0.492 in	12.5 mm	10 V	2.448 A	4700 µF	20 mOhms	Polar	20 %	5 mm	0.197 in	Radial, Can	2.88 A	36.5 mm	1.437 in
Chemi-Con EKY-100ETD221MF11D	Through Hole	-40 °C	105 ░C	General Purpose	12.5 mm	0.492 in	4000 Hrs	0.248 in	6.3 mm	10 V	170 mA	220 µF	220 mOhms	Polar	20 %	2.5 mm	0.098 in	Radial, Can	340 mA
