ACTT2S-800ETNJ

Active

WeEn Semiconductors

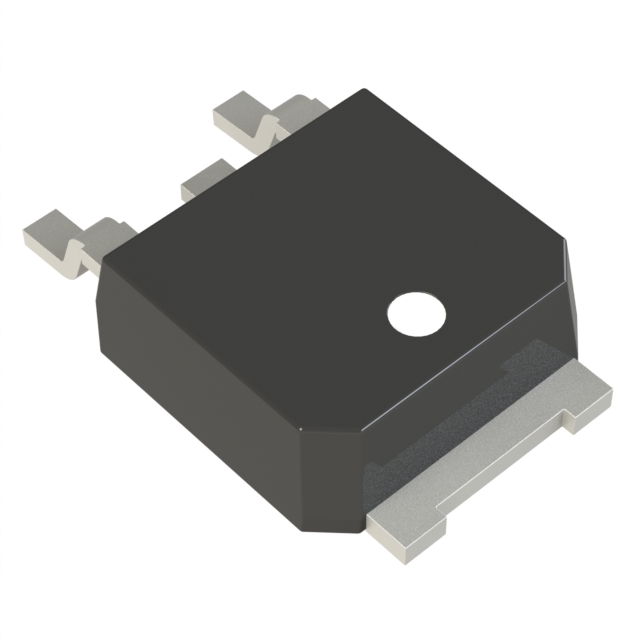

TRIAC SENS GATE 800V 2A DPAK

Search across all available documentation for this part.

Active

WeEn Semiconductors

TRIAC SENS GATE 800V 2A DPAK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TRIAC Logic - Sensitive Gate 800 V 2 A Surface Mount DPAK

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ACTT2S-800ETNJ	ACTT2 Series

Configuration	Single	Single
Current - Gate Trigger (Igt) (Max) [Max]	10 mA	10 mA
Current - Hold (Ih) (Max) [Max]	10 mA	10 - 25 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	19.8 A, 18 A	14 - 20 A
Current - On State (It (RMS)) (Max) [Max]	2 A	2 A
Mounting Type	Surface Mount	Surface Mount, Through Hole
Operating Temperature	150 °C	125 - 150 °C
Package / Case	SC-63, DPAK (2 Leads + Tab), TO-252-3	TO-261AA, TO-261-4, TO-220-3 Full Pack, Isolated Tab, SC-63, DPAK (2 Leads + Tab), TO-252-3
Supplier Device Package	DPAK	SC-73, TO-220F, DPAK
Triac Type	Logic - Sensitive Gate	Standard, Logic - Sensitive Gate
Voltage - Gate Trigger (Vgt) (Max) [Max]	1 V	1 - 2 V
Voltage - Off State	800 V	800 V

AC THYRISTOR TRIAC POWER SWITCH

Part	Mounting Type	Operating Temperature	Configuration	Current - Hold (Ih) (Max) [Max]	Triac Type	Current - On State (It (RMS)) (Max) [Max]	Voltage - Off State	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]
WeEn Semiconductors ACTT2W-800ETNF	Surface Mount	150 °C	Single	10 mA	Standard	2 A	800 V	SC-73	1 V	18 A, 20 A	TO-261-4, TO-261AA	10 mA
WeEn Semiconductors ACTT2X-800E/DGQ	Through Hole	125 ¯C	Single	25 mA	Logic - Sensitive Gate	2 A	800 V	TO-220F	1 V	14 A, 15.4 A	TO-220-3 Full Pack, Isolated Tab	10 mA
WeEn Semiconductors ACTT2X-800E,127	Through Hole	125 ¯C	Single	25 mA	Logic - Sensitive Gate	2 A	800 V	TO-220F	1.5 V	14 A, 15.4 A	TO-220-3 Full Pack, Isolated Tab	10 mA
WeEn Semiconductors ACTT2X-800ETNQ	Through Hole	150 °C	Single	10 mA	Standard	2 A	800 V	TO-220F	2 V	18 A, 20 A	TO-220-3 Full Pack, Isolated Tab	10 mA
WeEn Semiconductors ACTT2S-800E,118	Surface Mount	125 ¯C	Single	25 mA	Logic - Sensitive Gate	2 A	800 V	DPAK	1.5 V	14 A, 15.4 A	DPAK (2 Leads + Tab), SC-63, TO-252-3	10 mA
WeEn Semiconductors ACTT2S-800ETNJ	Surface Mount	150 °C	Single	10 mA	Logic - Sensitive Gate	2 A	800 V	DPAK	1 V	18 A, 19.8 A	DPAK (2 Leads + Tab), SC-63, TO-252-3	10 mA
