EKZE6R3ETD332MK20S

Active

Chemi-Con

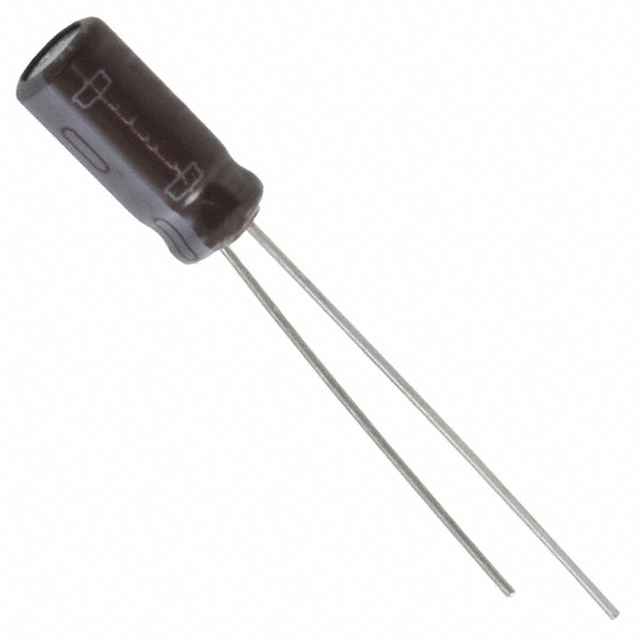

CAP ALUM 3300UF 20% 6.3V RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EKZE6R3ETD332MK20S

Active

Chemi-Con

CAP ALUM 3300UF 20% 6.3V RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EKZE6R3ETD332MK20S	EKZE6R3E Series

Applications	General Purpose	General Purpose
Capacitance	3.3 mF	1.2 - 4700 µF
Height - Seated (Max)	-	0.315 - 1.043 in
Height - Seated (Max)	-	8 - 26.5 mm
Height - Seated (Max) [Max]	21.5 mm	12.5 - 31.5 mm
Height - Seated (Max) [Max]	0.846 in	0.492 - 1.24 in
Impedance	21 mOhms	16 - 300 mOhms
Lead Spacing	5 mm	2 - 7.5 mm
Lead Spacing	0.197 in	0.079 - 0.295 in
Lifetime @ Temp.	5000 Hrs	2000 - 5000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Polarization	Polar	Polar
Ripple Current @ High Frequency	2.36 A	1.43 - 405 A
Ripple Current @ Low Frequency	1.77 A	1.092 - 858 A
Size / Dimension [diameter]	0.492 in	0.197 - 0.63 in
Size / Dimension [diameter]	12.5 mm	5 - 16 mm
Tolerance	20 %	20 %
Voltage - Rated	6.3 V	6.3 V

EKZE6R3E Series

CAP ALUM 3900UF 20% 6.3V RADIAL

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ Low Frequency	Polarization	Package / Case	Impedance	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Lifetime @ Temp.	Voltage - Rated	Lead Spacing	Lead Spacing	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EKZE6R3ELL392MK25S	1.043 in	26.5 mm	2.0775 A	Polar	Radial, Can	18 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.492 in	12.5 mm	20 %	5000 Hrs	6.3 V	5 mm	0.197 in	3900 µF	2.77 A
Chemi-Con EKZE6R3ELL331MF11D	0.433 in	11 mm	202.5 mA	Polar	Radial, Can	130 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.248 in	6.3 mm	20 %	2000 Hrs	6.3 V	2.5 mm	0.098 in	330 µF	405 mA
Chemi-Con EKZE6R3ETD332MK20S			1.77 A	Polar	Radial, Can	21 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.492 in	12.5 mm	20 %	5000 Hrs	6.3 V	5 mm	0.197 in	3.3 mF	2.36 A	21.5 mm	0.846 in
Chemi-Con EKZE6R3ETD152MJ20S			1.092 A	Polar	Radial, Can	23 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.394 in	10 mm	20 %	4000 Hrs	6.3 V	5 mm	0.197 in	1.5 mF	1.82 A	21.5 mm	0.846 in
Chemi-Con EKZE6R3ETD122MJ16S			858 mA	Polar	Radial, Can	38 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.394 in	10 mm	20 %	4000 Hrs	6.3 V	5 mm	0.197 in	1.2 mF	1.43 A	17.5 mm	0.689 in
Chemi-Con EKZE6R3ETD222MJ25S	1.043 in	26.5 mm	1.6125 A	Polar	Radial, Can	22 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.394 in	10 mm	20 %	4000 Hrs	6.3 V	5 mm	0.197 in	2200 µF	2.15 A
Chemi-Con EKZE6R3ETD331MF11D			202.5 mA	Polar	Radial, Can	130 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.248 in	6.3 mm	20 %	2000 Hrs	6.3 V	2.5 mm	0.098 in	330 µF	405 mA	12.5 mm	0.492 in
Chemi-Con EKZE6R3ELL151ME11D			100 mA	Polar	Radial, Can	300 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.197 "	5 mm	20 %	2000 Hrs	6.3 V	2 mm	0.079 in	150 µF	250 mA	12.5 mm	0.492 in
Chemi-Con EKZE6R3ETD221MH07D	0.315 in	8 mm	190 mA	Polar	Radial, Can	150 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.315 "	8 mm	20 %	5000 Hrs	6.3 V	3.5 mm	0.138 in	220 µF	380 mA
Chemi-Con EKZE6R3ELL562ML20S			2.669 A	Polar	Radial, Can	18 mOhms	Through Hole	General Purpose	-40 °C	105 ░C	0.63 in	16 mm	20 %	5000 Hrs	6.3 V	7.5 mm	0.295 in	5.6 mF	3.14 A	21.5 mm	0.846 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	500	$ 0.43

Description

General part information

EKZE6R3E Series

3300 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
