04J-AS-T01
ActiveGrayhill Inc.

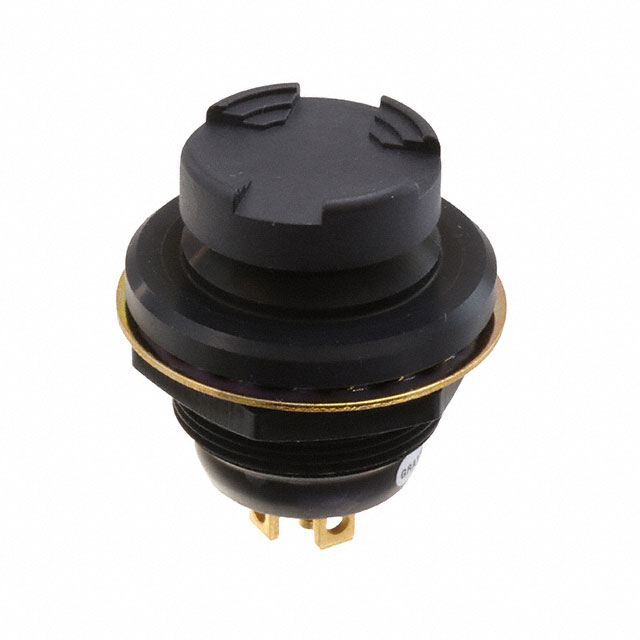

SWITCH NAVIGATION CASTLE 2A 115V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
04J-AS-T01
ActiveGrayhill Inc.
SWITCH NAVIGATION CASTLE 2A 115V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 04J-AS-T01 | 04J-AS Series |
|---|---|---|
| Actuator Type | Castle | Conical, Castle |
| Contact Finish | Gold | Gold |
| Contact Material | Nickel | Nickel |
| Current Rating (Amps) | 2 A | 2 - 10 mA |
| Electrical Life | 100000 Cycles | 100000 Cycles |
| Features | - | Gray Actuator |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Mechanical Life | 100000 Cycles | 100000 Cycles |
| Operating Force | 454 gf | 454 gf |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Output | Digital (Mechanical Switch) | Digital (Mechanical Switch) |
| Switch Function | 4-Way Directional, Center Select | 4-Way Directional, Center Select |
| Termination Style | Solder Lug | Solder Lug |
| Type | 2 Axis | 2 Axis |
| Type | Navigation Switch | Navigation Switch |
| Voltage Rating - AC | 115 V | 115 V |
| Voltage Rating - DC | 28 V | 5 - 28 V |
04J-AS Series
SWITCH NAV CONICAL 10MA 5V
| Part | Termination Style | Features | Electrical Life | Operating Force | Actuator Type | Mechanical Life | Type | Type | Output | Switch Function | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Contact Finish | Voltage Rating - DC | Contact Material | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Grayhill Inc. 04J-AS-C12 | Solder Lug | Gray Actuator | 100000 Cycles | 454 gf | Conical | 100000 Cycles | 2 Axis | Navigation Switch | Digital (Mechanical Switch) | 4-Way Directional, Center Select | IP68 - Dust Tight, Waterproof | 85 °C | -55 °C | 10 mA | Gold | 5 V | Nickel | |
Grayhill Inc. 04J-AS-T01 | Solder Lug | 100000 Cycles | 454 gf | Castle | 100000 Cycles | 2 Axis | Navigation Switch | Digital (Mechanical Switch) | 4-Way Directional, Center Select | IP68 - Dust Tight, Waterproof | 85 °C | -55 °C | 2 A | Gold | 28 V | Nickel | 115 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 136.32 | |
| 5 | $ 134.40 | |||
| 10 | $ 126.72 | |||
| 25 | $ 119.04 | |||
| 50 | $ 109.44 | |||
| 100 | $ 99.84 | |||
Description
General part information
04J-AS Series
Navigation Switch, 2 - Axis Digital (Mechanical Switch) Output
Documents
Technical documentation and resources
