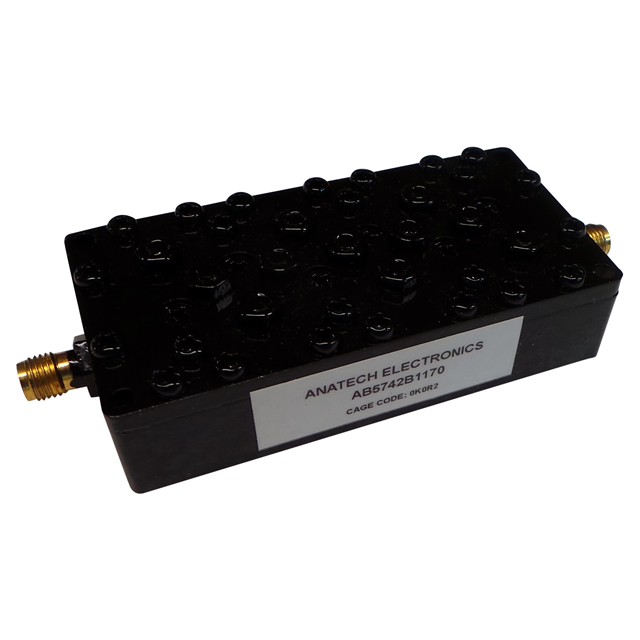

AB5742B1170
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 5.7425GHZ MOD
AB5742B1170
ActiveAnatech Electronics Inc.
RF FILTER BANDPASS 5.7425GHZ MOD
Description
General part information
AB5742B1170
5.7425GHz Center Frequency Band Pass RF Filter (Radio Frequency) 185MHz Bandwidth 1dB Module, SMA Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | AB5742B1170 |
|---|---|
| Bandwidth | 185 MHz |
| Filter Type | Band Pass |
| Frequency (Center) | 5.7425 GHz |
| Height (Max) | 0.827 in |
| Insertion Loss | 1 dB |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Size / Dimension Length | 2.827 in |
| Size / Dimension Width | 1.417 in |
