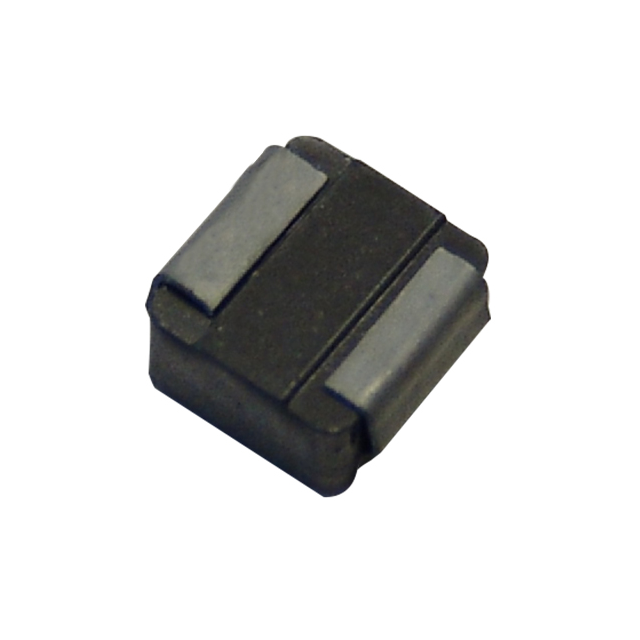

MND-06CZI2R2M-XB
ActivePulse Electronics
FIXED IND 2.2UH 11A 13.97MOHM SM
MND-06CZI2R2M-XB
ActivePulse Electronics
FIXED IND 2.2UH 11A 13.97MOHM SM
Description
General part information
MND-06CZI2R2M-XB
2.2 µH Shielded Molded Inductor 11 A 13.97mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | MND-06CZI2R2M-XB |
|---|---|
| Current Rating | 11 A |
| DC Resistance (DCR) (Max) | 13.97 mOhm |
| Height - Seated (Max) | 0.118 in |
| Inductance | 2.2 µH |
| Inductance Frequency - Test | 100 kHz |
| Material - Core | Alloy |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension Length | 0.258 in |
| Size / Dimension Width | 0.25 in |
| Tolerance | 20 % |
| Type | Molded |
