CB1.17LL-2IPX-10.5IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLG-PLG 10.5"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB1.17LL-2IPX-10.5IN-6O

Active

Lighthorse Technologies, Inc

CBL ASSY IPEX MHF1 PLG-PLG 10.5"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.19
		10	$ 4.88
		25	$ 4.61
		50	$ 4.37
		100	$ 4.15
		250	$ 3.77
		500	$ 3.46
		1000	$ 3.19

Description

General part information

CB1.17LL Series

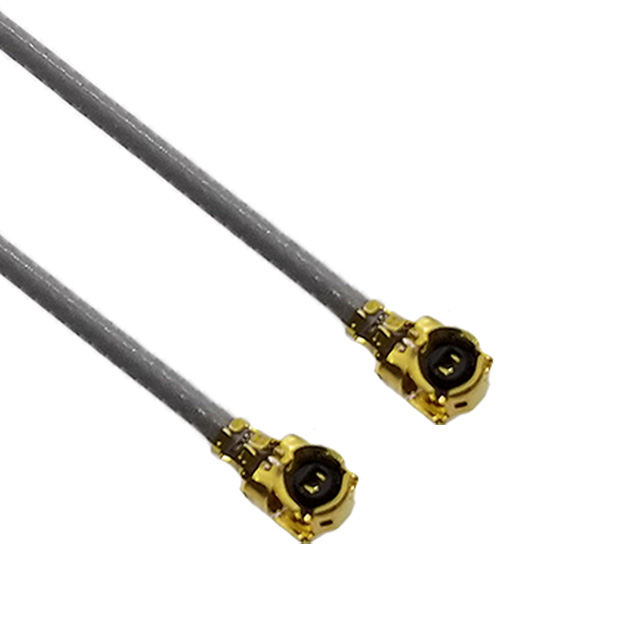

Cable Assembly Coaxial U.FL (UMCC), IPEX MHF1 to U.FL (UMCC), IPEX MHF1 1.17mm OD LL Coaxial Cable 10.500" (266.70mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CB1.17LL-2IPX-10.5IN-6O	CB1.17LL Series

1st Connector	Right Angle, IPEX MHF1 Plug, U.FL (UMCC)	U.FL (UMCC), Right Angle, I-PEX MHF1 Plug, IPEX MHF1 Plug, IPEX MHF4L Plug, Right Angle, I-PEX MHF4L Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	Right Angle, I-PEX MHF1 Plug, U.FL (UMCC), U.FL (UMCC), IPEX MHF1 Plug, Right Angle, IPEX MHF4L Plug, Right Angle, I-PEX MHF4L Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Female	Female
Cable Impedance	50 Ohms	50 Ohms
Cable Type	LL Coaxial Cable	LL Coaxial Cable
Cable Type [diameter]	1.17 mm	1.17 mm
Color	Gray	Gray
Features	Opposite Orientation, Shielded	Shielded, Opposite Orientation
Frequency - Max [Max]	9 GHz	9 - 12 GHz
Length	10.5 in	1.5 - 12 "
Length	266.7 mm	38.1 - 304.8 mm
Length	-	1 - 12.5 in
Length	-	25.4 - 317.5 mm
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	IPEX MHF1 to U.FL (UMCC), U.FL (UMCC), IPEX MHF1	I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC), I-PEX MHF1, IPEX MHF1 to U.FL (UMCC), IPEX MHF1, IPEX MHF4L to IPEX MHF4L, I-PEX MHF4L to I-PEX MHF4L

CB1.17LL Series

COAX CBL U.FL MHF1 TO U.FL MHF1

Part	Overall Impedance	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Cable Type [diameter]	1st Connector Mounting Type	2nd Contact Gender	Length	Length	Frequency - Max [Max]	Cable Impedance	Color	1st Contact Gender	2nd Connector	Features	Style	1st Connector	2nd Connector Mounting Type	Length [x]	Length [x]
Lighthorse Technologies, Inc CB1.17LL-2IPX-11.5IN	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female	292.1 mm	11.5 "	9 GHz	50 Ohms	Gray	Female	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	Shielded	I-PEX MHF1, I-PEX MHF1 to U.FL (UMCC), U.FL (UMCC)	I-PEX MHF1 Plug, Right Angle, U.FL (UMCC)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CB1.17LL-2IPX-1.5IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female	38.1 mm	1.5 "	9 GHz	50 Ohms	Gray	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CB1.17LL-2IPX-5.5IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female			9 GHz	50 Ohms	Gray	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Free Hanging (In-Line)	5.5 in	139.7 mm
Lighthorse Technologies, Inc CB1.17LL-2IPX4L-7.5IN	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female			12 GHz	50 Ohms	Gray	Female	IPEX MHF4L Plug, Right Angle	Shielded	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Free Hanging (In-Line)	7.5 in	190.5 mm
Lighthorse Technologies, Inc CB1.17LL-2IPX4L-1IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female			12 GHz	50 Ohms	Gray	Female	IPEX MHF4L Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Free Hanging (In-Line)	1 in	25.4 mm
Lighthorse Technologies, Inc CB1.17LL-2IPX-12.5IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female			9 GHz	50 Ohms	Gray	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Free Hanging (In-Line)	12.5 in	317.5 mm
Lighthorse Technologies, Inc CB1.17LL-2IPX4L-4.5IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female	114.3 mm	4.5 in	12 GHz	50 Ohms	Gray	Female	IPEX MHF4L Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Free Hanging (In-Line)
Lighthorse Technologies, Inc CB1.17LL-2IPX-12IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female	304.8 mm	12 "	9 GHz	50 Ohms	Gray	Female	U.FL (UMCC), IPEX MHF1 Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF1, IPEX MHF1 to U.FL (UMCC), U.FL (UMCC)	IPEX MHF1 Plug, Right Angle, U.FL (UMCC)	Free Hanging (In-Line)
Lighthorse Technologies, Inc CB1.17LL-2IPX4L-10.5IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female	266.7 mm	10.5 in	12 GHz	50 Ohms	Gray	Female	IPEX MHF4L Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Free Hanging (In-Line)
Lighthorse Technologies, Inc CB1.17LL-2IPX4L-2IN-6O	50 Ohms	90 °C	-40 °C	LL Coaxial Cable	1.17 mm	Free Hanging (In-Line)	Female	50.8 mm	2 in	12 GHz	50 Ohms	Gray	Female	IPEX MHF4L Plug, Right Angle	Opposite Orientation, Shielded	IPEX MHF4L to IPEX MHF4L	IPEX MHF4L Plug, Right Angle	Free Hanging (In-Line)
