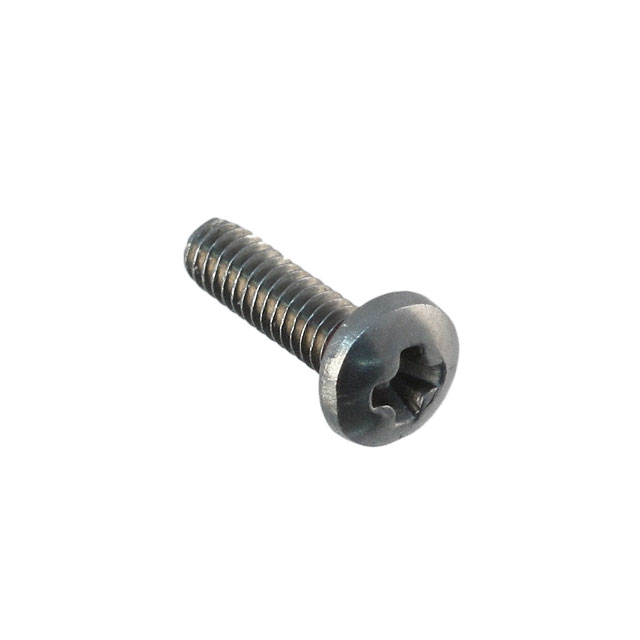

R2-56X5/16 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 2-56

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R2-56X5/16 2701

Active

APM HEXSEAL

MACHINE SCREW PAN PHILLIPS 2-56

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R2-56X5/16 2701	R2-56 Series

Drive Type	Phillips	Phillips
Features	Self Sealing	Self Sealing
Head Diameter [diameter]	0.181 in	0.181 in
Head Diameter [diameter]	4.6 mm	4.6 mm
Head Height	0.063 in	0.063 in
Head Height	1.6 mm	1.6 mm
Head Height	0.0625 "	0.0625 "
Length - Below Head	-	0.25 - 9.53 in
Length - Below Head	-	0.375 - 15.88 mm
Length - Below Head	-	0.25 - 0.625 in
Length - Below Head	-	7/16, 1/2
Length - Below Head [x]	0.313 in	0.313 in
Length - Below Head [x]	5 in	5 in
Length - Below Head [x]	7.95 mm	7.95 mm
Length - Overall	-	7.95 - 17.48 mm
Length - Overall	-	0.438 - 0.688 in
Length - Overall	-	0.3125 - 0.6875 in
Length - Overall [x]	0.374 in	0.313 - 0.374 in
Length - Overall [x]	9.5 mm	9.5 mm
Material	Stainless Steel	Stainless Steel
Screw Head Type	Pan Head	Pan Head
Thread Size	#2-56	#2-56
Type	Machine Screw	Machine Screw

R2-56 Series

MACHINE SCREW PAN PHILLIPS 2-56

Part	Material	Length - Overall [x]	Length - Overall [x]	Features	Length - Below Head [x]	Length - Below Head [x]	Length - Below Head [x]	Head Height	Head Height	Head Height	Head Diameter [diameter]	Head Diameter [diameter]	Drive Type	Screw Head Type	Type	Thread Size	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall	Length - Overall	Length - Overall	Length - Below Head
APM HEXSEAL R2-56X5/16 2701	Stainless Steel	0.374 in	9.5 mm	Self Sealing	0.313 in	5 in	7.95 mm	0.063 in	1.6 mm	0.0625 "	0.181 in	4.6 mm	Phillips	Pan Head	Machine Screw	#2-56
APM HEXSEAL R2-56X5/8 2701	Stainless Steel			Self Sealing				0.063 in	1.6 mm	0.0625 "	0.181 in	4.6 mm	Phillips	Pan Head	Machine Screw	#2-56	0.625 in	15.88 mm	0.625 in	17.48 mm	0.688 in	0.6875 in
APM HEXSEAL R2-56X3/8 2701	Stainless Steel			Self Sealing				0.063 in	1.6 mm	0.0625 "	0.181 in	4.6 mm	Phillips	Pan Head	Machine Screw	#2-56	9.53 mm	0.375 "	0.375 "	11.13 mm	0.438 in	0.4375 in
APM HEXSEAL R2-56X7/16 2701	Stainless Steel			Self Sealing				0.063 in	1.6 mm	0.0625 "	0.181 in	4.6 mm	Phillips	Pan Head	Machine Screw	#2-56		11.13 mm	0.438 "	12.7 mm	0.5 in	0.5 in	7/16
APM HEXSEAL R2-56X1/2 2701	Stainless Steel			Self Sealing				0.063 in	1.6 mm	0.0625 "	0.181 in	4.6 mm	Phillips	Pan Head	Machine Screw	#2-56		12.7 mm	0.5 in	14.3 mm	0.563 "	0.5625 "	1/2
APM HEXSEAL R2-56X9/16 2701	Stainless Steel			Self Sealing				0.063 in	1.6 mm	0.0625 "	0.181 in	4.6 mm	Phillips	Pan Head	Machine Screw	#2-56	0.5625 in	14.3 mm	0.563 in
APM HEXSEAL R2-56X1/4 2701	Stainless Steel	0.313 in		Self Sealing				0.063 in	1.6 mm	0.0625 "	0.181 in	4.6 mm	Phillips	Pan Head	Machine Screw	#2-56	0.25 in	6.35 mm	0.25 in	7.95 mm		0.3125 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	250	$ 0.53

Description

General part information

R2-56 Series

#2-56 Pan Head Machine Screw Phillips Drive Stainless Steel

Documents

Technical documentation and resources
