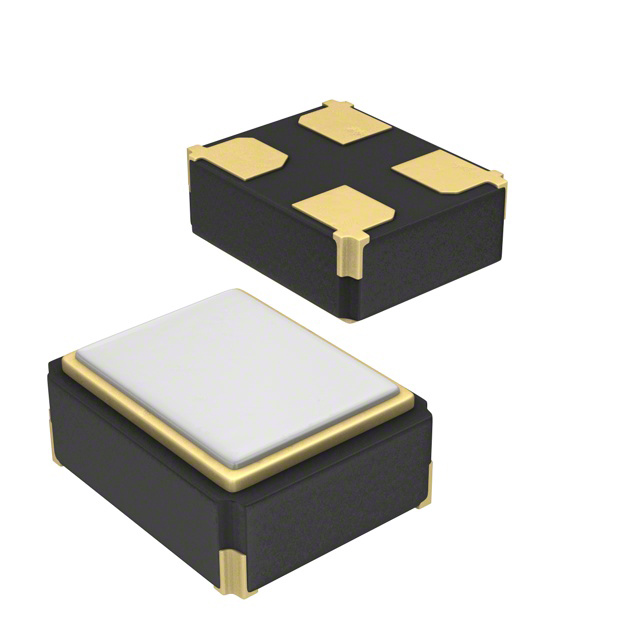

TC25M3A32K7680
ActiveCTS-Frequency Controls
XTAL OSC XO 32.7680KHZ CMOS SMD
TC25M3A32K7680
ActiveCTS-Frequency Controls
XTAL OSC XO 32.7680KHZ CMOS SMD
Description
General part information
TC25M3A32K7680
32.768 kHz XO (Standard) CMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | TC25M3A32K7680 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 3 mA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.039 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
