Technical Specifications
Parameters and characteristics for this part
| Specification | ZB3PD-63-S+ |
|---|---|
| Frequency [Max] | 1.05 GHz |
| Frequency [Min] | 700 MHz |
| Insertion Loss | 1.5 dB |
| Package / Case | Module, SMA Connectors |
| Size / Dimension [x] | 114.3 mm |
| Size / Dimension [x] | 4.5 in |
| Size / Dimension [y] | 6 " |
| Size / Dimension [y] | 152.4 mm |
| Size / Dimension [z] | 0.88 in |
| Size / Dimension [z] | 22.35 mm |
| Specifications [Max] | 16 ° |
| Specifications [Min] | 16 dB |
ZB3PD-63 Series
| Part | Specifications [Max] | Specifications [Min] | Insertion Loss | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Package / Case | Frequency [Max] | Frequency [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
MINI-CIRCUITS | 16 ° | 16 dB | 1.5 dB | 6 " | 114.3 mm | 152.4 mm | 0.88 in | 4.5 in | 22.35 mm | N-Type In-Line Module | 6 GHz | 150 MHz |
MINI-CIRCUITS | 16 ° | 16 dB | 1.5 dB | 6 " | 114.3 mm | 152.4 mm | 0.88 in | 4.5 in | 22.35 mm | Module SMA Connectors | 1.05 GHz | 700 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 227.62 | |
| 10 | $ 214.25 | |||
Description
General part information
ZB3PD-63 Series

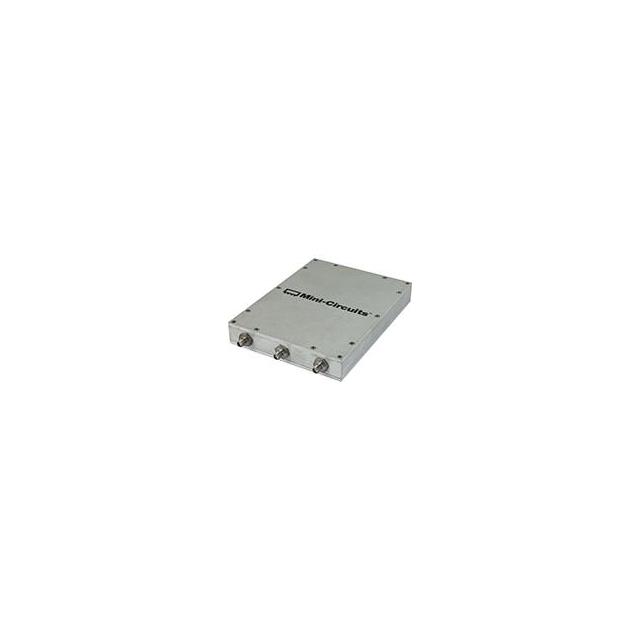

RF Power Divider 700 MHz ~ 1.05 GHz Isolation (Min) 16dB, 16° Imbalance (Max) Module, SMA Connectors
