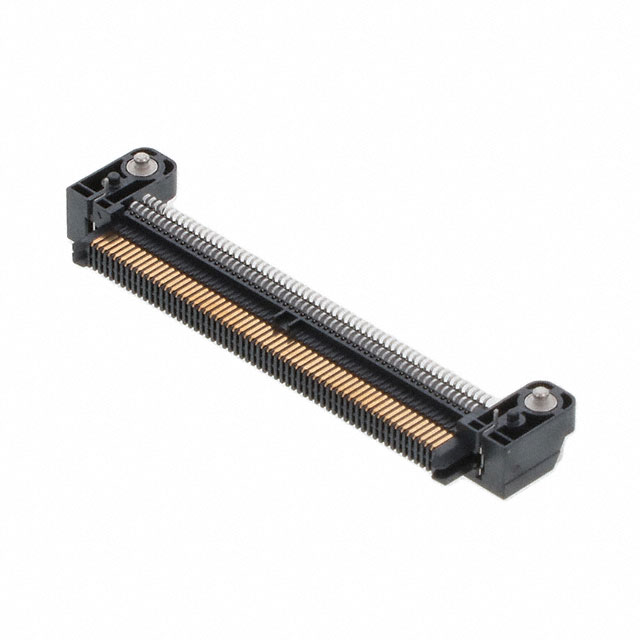

ERM8-060-01-L-D-RA-K-TR

ERM8-060-01-L-D-RA-K-TR

Active
Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.8 MM, 2 ROWS, 120 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Find alt
ERM8-060-01-L-D-RA-K-TR

ERM8-060-01-L-D-RA-K-TR

Active
Samtec Inc.

MEZZANINE CONNECTOR, HEADER, 0.8 MM, 2 ROWS, 120 CONTACTS, SURFACE MOUNT RIGHT ANGLE

Find alt

Description

General part information

ERM8-060 Series

120 Position Connector Header, Center Strip Contacts Surface Mount, Right Angle Gold

Technical Specifications

Parameters and characteristics for this part

SpecificationERM8-060-01-L-D-RA-K-TR
Connector TypeHeader, Center Strip Contacts
Contact FinishGold
Contact Finish Thickness10 Ąin
FeaturesBoard Guide, Mounting Flange, Pick and Place
Height Above Board0.246 in
Mounting TypeRight Angle, Surface Mount
Number of Positions120
Number of Rows2
Pitch0.031 in
