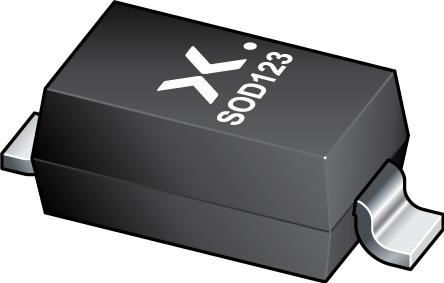

BZT52-C20-QX
UnknownNexperia USA Inc.
DIODE ZENER SINGLE 20V 5% 590MW 2-PIN SOD-123 BOX AUTOMOTIVE AEC-Q101
BZT52-C20-QX
UnknownNexperia USA Inc.
DIODE ZENER SINGLE 20V 5% 590MW 2-PIN SOD-123 BOX AUTOMOTIVE AEC-Q101
Description
General part information
BZT52 Series
General-purpose Zener diodes in an SOD123F small and flat lead Surface-Mounted Device (SMD) plastic package.
Technical Specifications
Parameters and characteristics for this part
| Specification | BZT52-C20-QX |
|---|---|
| Current - Reverse Leakage | 50 nA |
| Grade | Automotive |
| Impedance (Max) (Zzt) | 20 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOD-123 |
| Package Name | SOD-123 |
| Power - Max | 350 mW |
| Qualification | AEC-Q101 |
| Tolerance | 6 % |
| Voltage - Forward (Vf) (Max) | 900 mV |
| Voltage - Zener (Nom) (Vz) | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
plastic, surface-mounted package; 2 leads; 2.675 mm x 1.6 mm x 1.15 mm body
Nexperia package poster
Wave soldering profile
plastic, surface-mounted package; 2 leads; 2.675 mm x 1.6 mm x 1.15 mm body
SOD123 - improved system reliability
Voltage regulator diodes
Questions about package outline drawings
Reel pack for SMD, 7''; Q1/T1-Q2/T3 product orientation
Reflow soldering profile
BZT52-C20-Q Nexperia Product Reliability
