9535 060U1000

Active

Belden Inc.

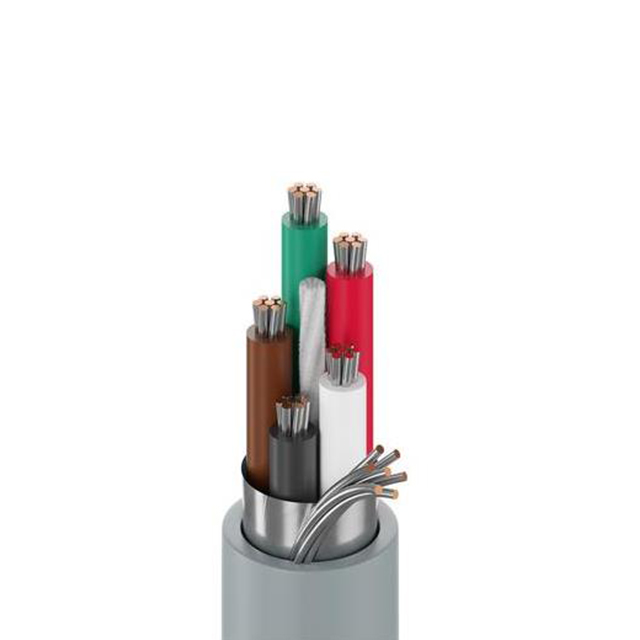

CABLE 5COND 24AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 24AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	9535 060U1000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	32 AWG
Conductor Strand [custom]	7
Features	Drain Wire
Jacket (Insulation) Diameter [diameter]	0.189 in
Jacket (Insulation) Diameter [diameter]	4.8 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-30 ░C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Computer
Voltage	300 V
Wire Gauge	24 AWG

Part	Shield Type	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Usage	Wire Gauge	Conductor Insulation	Features	Shield Material	Jacket Color	Length [x]	Length [x]	Conductor Material	Conductor Strand [custom]	Conductor Strand [custom]	Number of Conductors	Shield Coverage	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Ratings	Voltage	Length	Length
Belden Inc. 9535 060100	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome	30.5 m	100 ft	Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm
Belden Inc. 9535 0601000	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome			Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V	1000 ft	304.8 m
Belden Inc. 9535 060U1000	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome			Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V	1000 ft	304.8 m
Belden Inc. 9535 060U500	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome	152.4 m	500 '	Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V
Belden Inc. 9535 0605000	Foil	Poly-Vinyl Chloride (PVC)	-30 ░C	80 C	Computer	24 AWG	Poly-Vinyl Chloride (PVC)	Drain Wire	Aluminum	Chrome			Copper Tinned	32 AWG	7	5	100 %	Multi-Conductor	0.189 in	4.8 mm	UL Style 2464	300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.94

General part information

5 Conductor Multi-Conductor Cable Chrome 24 AWG Foil 1000.0' (304.8m)
