101188504CH

Active

Integrated Power Designs

AC/DC CNVRT 24V -28V +/-15V 400W

Search across all available documentation for this part.

Active

Integrated Power Designs

AC/DC CNVRT 24V -28V +/-15V 400W

Technical Specifications

Parameters and characteristics for this part

Specification	101188504CH

Applications	ITE (Commercial), Medical
Approval Agency	TUV, cURus, CE, UKCA
Current - Output 1	12.5 A
Current - Output 2	5 A
Current - Output 3	5 A
Current - Output 4	5 A
Efficiency	87 %
Features	Remote Sense, Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	4
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Size / Dimension [x]	180.3 mm
Size / Dimension [x]	7.1 "
Size / Dimension [y]	106.2 mm
Size / Dimension [y]	4.18 in
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Standard Number	60601-1, 62368-1
Type	Chassis
Voltage - Input [Max]	240 VAC
Voltage - Input [Min]	100 VAC
Voltage - Output 1	24 V
Voltage - Output 2	-28 V
Voltage - Output 3	15 V
Voltage - Output 4	-15 V

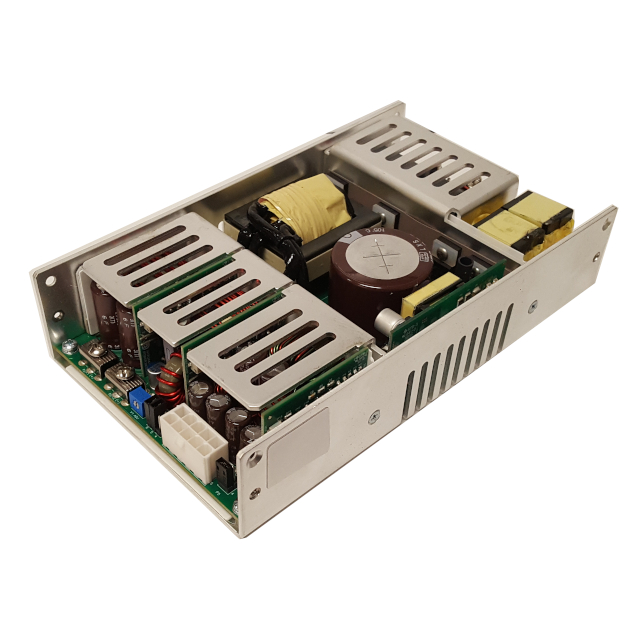

AC/DC CNVRT 24V -28V +/-15V 400W

Part	Number of Outputs	Voltage - Output 4	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Current - Output 2	Approval Agency	Efficiency	Voltage - Output 1	Type	Voltage - Output 2	Voltage - Input [Max]	Voltage - Input [Min]	Standard Number	Current - Output 1	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 3	Voltage - Output 3	Current - Output 4	Mounting Type
Integrated Power Designs 101188504CH	4	-15 V	-20 °C	70 °C	ITE (Commercial), Medical	5 A	CE, cURus, TUV, UKCA	87 %	24 V	Chassis	-28 V	240 VAC	100 VAC	60601-1, 62368-1	12.5 A	Adjustable Output, Remote Sense, Universal Input	106.2 mm	4.18 in	180.3 mm	38 mm	1.5 "	7.1 "	5 A	15 V	5 A	Chassis Mount
