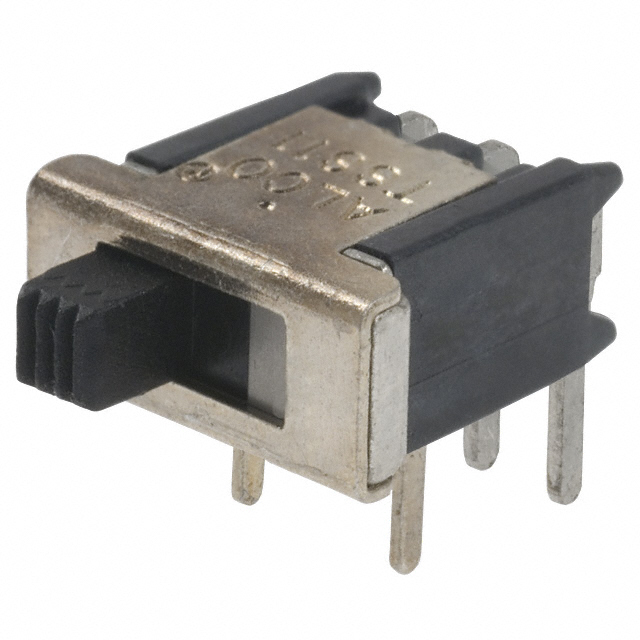

TSS11DGRA
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SLIDE SPDT 0.4VA 20V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSS11DGRA
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SLIDE SPDT 0.4VA 20V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSS11DGRA |
|---|---|
| Actuator Length [x] | 2.79 mm |
| Actuator Material | Polybutylene Terephthalate (PBT) |
| Actuator Type | Standard |
| Circuit | SPDT |
| Contact Finish | Gold |
| Contact Material | Copper |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 60000 Cycles |
| Features | Epoxy Sealed Terminals |
| Mechanical Life | 60000 Cycles |
| Mounting Type | Through Hole, Right Angle |
| Operating Force [Max] | 600 gf |
| Operating Force [Min] | 150 gf |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-On |
| Switch Travel | 3.05 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 20 V |
| Voltage Rating - DC | 20 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
TSS11DGRA
Slide Switch SPDT Through Hole, Right Angle
