638-W26-321-012

Active

EDAC Inc.

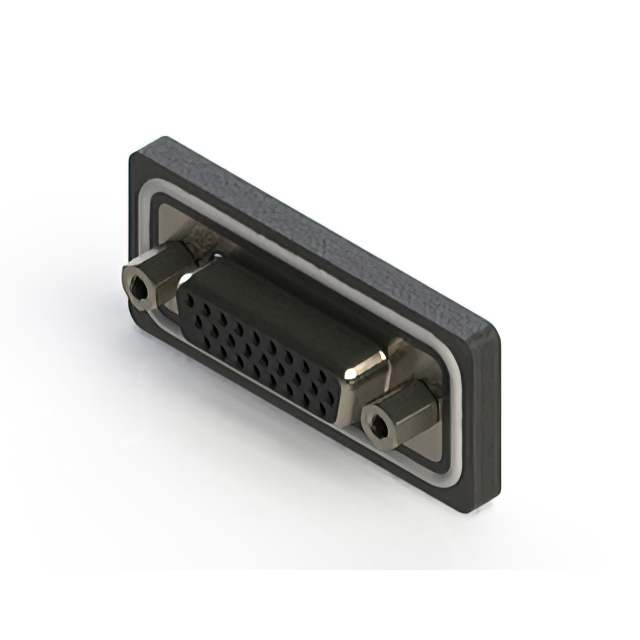

CONN D-SUB HD RCPT 26P VERT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

638-W26-321-012

Active

EDAC Inc.

CONN D-SUB HD RCPT 26P VERT SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	638-W26-321-012

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density
Termination	Solder

638-W26 Series

Part	Ingress Protection	Contact Finish	Connector Type	Connector Style	Shell Material, Finish	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Color	Number of Positions	Material Flammability Rating	Current Rating (Amps)	Number of Rows	Termination	Contact Material	Shell Size, Connector Layout	Shell Size, Connector Layout	Dielectric Material	Contact Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 638-W26-221-012	IP67 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	D-Sub High Density	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Flash	Black	26	UL94 V-0	3 A	3	Solder	Copper Alloy	2	(DA A) High Density	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Through Hole
EDAC Inc. 638-W26-222-012	IP67 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	D-Sub High Density	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	-25 °C	85 °C	Flash	Black	26	UL94 V-0	3 A	3		Copper Alloy	2	(DA A) High Density	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Free Hanging (In-Line)
EDAC Inc. 638-W26-321-012	IP67 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	D-Sub High Density	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	-25 °C	85 °C		Black	26	UL94 V-0	3 A	3	Solder	Copper Alloy	2	(DA A) High Density	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Through Hole	15 µin	0.38 µm
EDAC Inc. 638-W26-322-012	IP67 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	D-Sub High Density	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	-25 °C	85 °C		Black	26	UL94 V-0	3 A	3		Copper Alloy	2	(DA A) High Density	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Free Hanging (In-Line)	15 µin	0.38 µm
EDAC Inc. 638-W26-621-012	IP67 - Dust Tight Waterproof	Gold	Receptacle Female Sockets	D-Sub High Density	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	-25 °C	85 °C		Black	26	UL94 V-0	3 A	3	Solder	Copper Alloy	2	(DA A) High Density	Polybutylene Terephthalate (PBT) Glass Filled	Signal	Through Hole	30 Áin	0.76 Ám

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 12.26

Description

General part information

638-W26 Series

26 Position D-Sub, High Density Receptacle, Female Sockets Connector
