3180-4SG-330

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3180-4SG-330

Active

Conxall/Switchcraft

CONN PLUG FMALE 4POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	3180-4SG-330	3180-4S Series

Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	5.84 mm
Cable Opening	-	4.57 mm
Cable Opening	-	0.18 in
Cable Opening	-	0.2 in
Cable Opening	-	5.08 mm
Cable Opening	-	0.15 - 0.17 in
Cable Opening	-	3.81 - 4.32 mm
Cable Opening [Max] [diameter]	0.32 in	0.23 - 0.32 in
Cable Opening [Max] [diameter]	8.13 mm	8.13 mm
Cable Opening [Min] [diameter]	7.62 mm	5.33 - 7.62 mm
Cable Opening [Min] [diameter]	0.3 in	0.21 - 0.3 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell, Cable Clamp
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	600 V	600 V

3180-4S Series

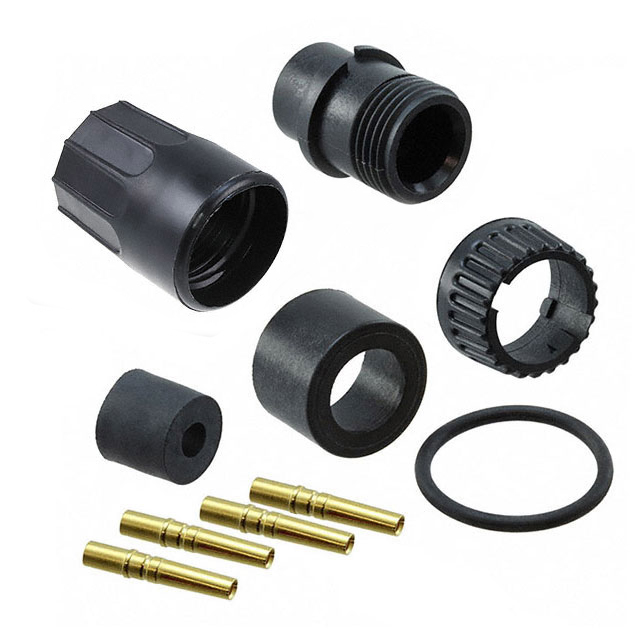

CONN PLUG FMALE 4POS GOLD CRIMP

Part	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Backshell Material, Plating	Fastening Type	Termination	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Number of Positions	Orientation	Contact Finish - Mating	Features	Connector Type	Mounting Type	Contact Material	Ingress Protection	Primary Material	Color	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [custom]	Cable Opening [custom]
Conxall/Switchcraft 3180-4SG-330	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp	7.62 mm	0.32 in	8.13 mm	0.3 in	4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black
Conxall/Switchcraft 3180-4SG-321	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp	5.33 mm	0.23 in		0.21 in	4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black	5.84 mm
Conxall/Switchcraft 3180-4SG-318	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3180-4SG-315	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3180-4SG-530	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp	7.62 mm	0.32 in	8.13 mm	0.3 in	4	Keyed	Gold	Backshell, Cable Clamp	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black
Conxall/Switchcraft 3180-4SG-518	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell, Cable Clamp	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black		4.57 mm	0.18 in	0.2 in	5.08 mm
Conxall/Switchcraft 3180-4SG-515	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell, Cable Clamp	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black						0.15 in, 0.17 in	3.81 mm, 4.32 mm
Conxall/Switchcraft 3180-4SG-3DC	Unshielded	-40 °C	115 °C	600 V	Nylon, Polyamide (PA)	Bayonet Lock	Crimp					4	Keyed	Gold	Backshell	Female Sockets, Plug	Free Hanging (In-Line)	Brass	Weathertight	Plastic	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.76
		10	$ 10.85
		25	$ 10.17
		50	$ 9.78

Description

General part information

3180-4S Series

4 Position Circular Connector Plug, Female Sockets Crimp
