100025189
ActiveTelegartner Inc

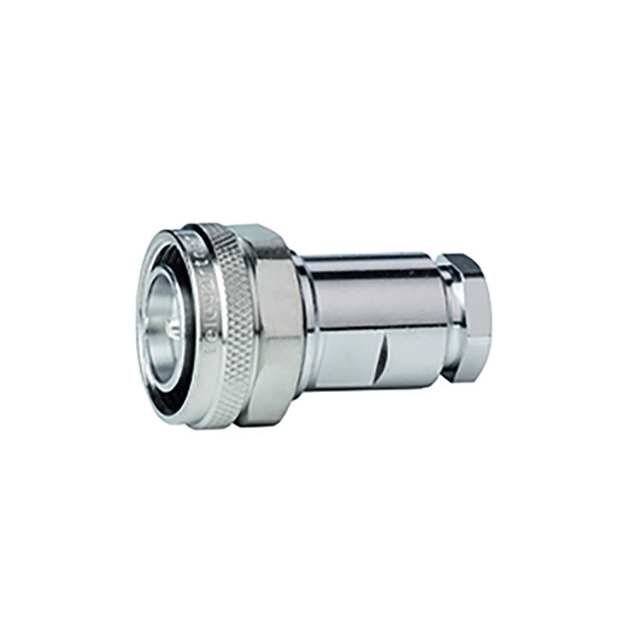

4.3-10 PLG S STR CL LL240 FIELDM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100025189
ActiveTelegartner Inc
4.3-10 PLG S STR CL LL240 FIELDM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 100025189 | J01440A0 Series |
|---|---|---|
| Body Finish | White Bronze | White Bronze, Silver |
| Body Material | Brass | Brass |
| Center Contact Material | Copper Alloy | Copper Alloy, Brass |
| Center Contact Plating | Silver | Silver |
| Connector Style | 4.3/10 | 4.3/10 |
| Connector Type | Male Pin, Plug | Male Pin, Plug |
| Contact Termination | Solder, Crimp | Solder, Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz | 3 - 6000 MHz |
| Housing Color | Silver | Silver |
| Impedance | 50 Ohms | 50 Ohms |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof, IP67 - Dust Tight, Waterproof |
| Mating Cycles | - | 500 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 - 155 °C |
| Operating Temperature [Min] | -30 ░C | -55 - -30 °C |
| Shield Termination | Clamp | Clamp, Crimp, Solder |
| Voltage Rating | 1500 V | 1000 - 1800 VDC |
J01440A0 Series
4.3-10 STRAIGHT PLUG SCREW
| Part | Connector Style | Center Contact Plating | Voltage Rating | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Shield Termination | Mounting Type | Center Contact Material | Connector Type | Body Finish | Contact Termination | Number of Ports | Frequency - Max [Max] | Impedance | Body Material | Dielectric Material | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Telegartner Inc 100033386 | 4.3/10 | Silver | 1000 VDC | IP68 - Dust Tight, Waterproof | 85 °C | -40 °C | Silver | Clamp | Free Hanging (In-Line) | Copper Alloy | Male Pin, Plug | White Bronze | Crimp, Solder | 1 | 6000 MHz | 50 Ohms | Brass | ||
Telegartner Inc 100025192 | 4.3/10 | Silver | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Silver | Crimp | Free Hanging (In-Line), Right Angle | Brass | Male Pin, Plug | White Bronze | Solder | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | ||
Telegartner Inc 100025183 | 4.3/10 | Silver | 1000 VDC | IP68 - Dust Tight, Waterproof | 85 °C | -40 °C | Silver | Clamp | Free Hanging (In-Line) | Brass | Male Pin, Plug | White Bronze | Crimp, Solder | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | |
Telegartner Inc 100025179 | 4.3/10 | Silver | IP68 - Dust Tight, Waterproof | Silver | Solder | Free Hanging (In-Line), Right Angle | Brass | Male Pin, Plug | Silver | Solder | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | ||||
Telegartner Inc 100025201 | 4.3/10 | Silver | IP67 - Dust Tight, Waterproof | 155 °C | -55 °C | Silver | Solder | Free Hanging (In-Line) | Brass | Male Pin, Plug | Silver | Solder | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | ||
Telegartner Inc 100025180 | 4.3/10 | Silver | 85 °C | -40 °C | Silver | Crimp | Free Hanging (In-Line) | Brass | Male Pin, Plug | White Bronze | Crimp | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | |||
Telegartner Inc 100025193 | 4.3/10 | Silver | IP67 - Dust Tight, Waterproof | 85 °C | -40 °C | Silver | Crimp | Free Hanging (In-Line), Right Angle | Brass | Male Pin, Plug | White Bronze | Solder | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | ||
Telegartner Inc 100025200 | 4.3/10 | Silver | IP67 - Dust Tight, Waterproof | 155 °C | -55 °C | Silver | Solder | Free Hanging (In-Line) | Brass | Male Pin, Plug | Silver | Solder | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | ||
Telegartner Inc 100025191 | 4.3/10 | Silver | 1000 VDC | IP68 - Dust Tight, Waterproof | 85 °C | -40 °C | Silver | Clamp | Free Hanging (In-Line), Right Angle | Copper Alloy | Male Pin, Plug | White Bronze | Crimp, Solder | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) | |
Telegartner Inc 100025187 | 4.3/10 | Silver | 85 °C | -40 °C | Silver | Crimp | Free Hanging (In-Line) | Copper Alloy | Male Pin, Plug | White Bronze | Crimp | 1 | 6000 MHz | 50 Ohms | Brass | Polytetrafluoroethylene (PTFE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 38.15 | |
| 10 | $ 30.46 | |||
| 25 | $ 28.18 | |||
| 50 | $ 25.05 | |||
Description
General part information
J01440A0 Series
4.3/10 Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp or Solder
