Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1407630 | EVO Series |
|---|---|---|
| Accessory Type | - | Thread Adapter, Locking Latch |
| Connector Type | Hood | Hood |
| For Use With/Related Products | - | HEAVYCON® Housings, Heavycon® D25 Bases and Hoods, Heavycon® EVO D Housings |
| Housing Color | Black | Black |
| Housing Material | Polyamide (PA), Nylon | Polyamide (PA), Nylon |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Lock Location | Locking Clip (2) on Hood | Locking Clip (2) on Hood |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Ratings | - | IP66 - Dust Tight, Water Resistant |
| Size | B10 | B10 |
| Specifications | - | 1/2 |
| Specifications | - | 0.75 in |
| Style | Side or Top Entry | Side or Top Entry |
EVO Series

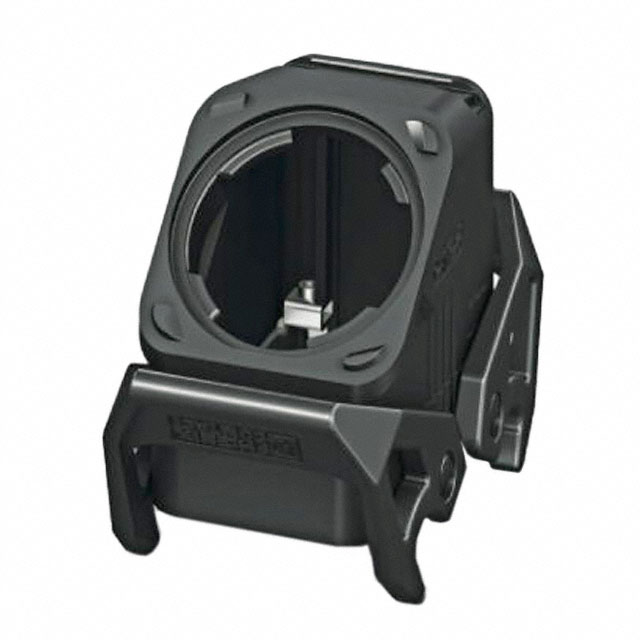

Heavy Duty Power Connectors HC-B-TA-NPT- 1/2-PLR-BK
| Part | Accessory Type | Specifications | For Use With/Related Products | Size | Connector Type | Housing Material | Ingress Protection | Housing Color | Style | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Ratings | Specifications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1414251 | Thread Adapter | 1/2 | HEAVYCON® Housings | |||||||||||
Phoenix Contact 1414668 | Locking Latch | Heavycon® D25 Bases and Hoods | ||||||||||||
Phoenix Contact 1407630 | B10 | Hood | Polyamide (PA), Nylon | Dust Tight, Water Resistant, Waterproof, IP66, IP68, IP69K | Black | Side or Top Entry | 125 °C | -40 °C | Locking Clip (2) on Hood | |||||
Phoenix Contact 1411354 | Thread Adapter | Heavycon® EVO D Housings | IP66 - Dust Tight, Water Resistant | 0.75 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
EVO Series
Heavy Duty Power Connectors HC-B-TA-NPT- 1/2-PLR-BK
