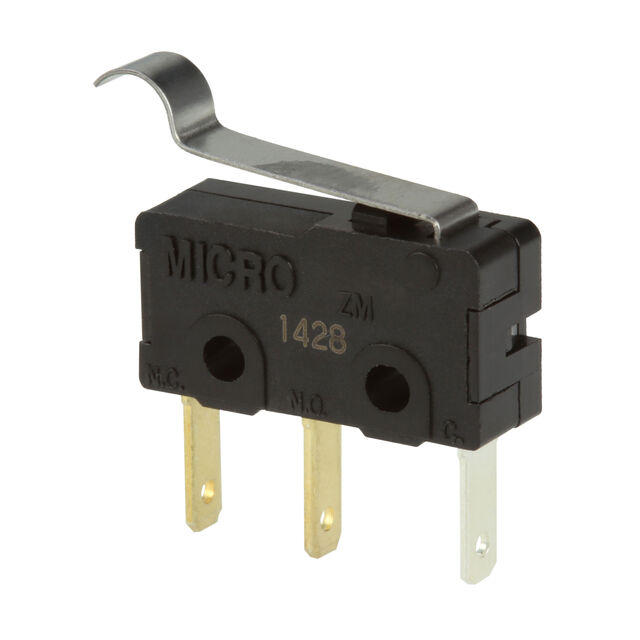

ZM10D70E01

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 100MA 125V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACT SPDT 100MA 125V

Part	Pretravel	Pretravel	Operating Force	Circuit	Mechanical Life	Electrical Life	Mounting Type	Operating Position	Operating Position	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Overtravel	Overtravel	Voltage Rating - AC	Actuator Type	Termination Style	Switch Function	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions ZM10D70E01	0.205 in	5.2 mm	26 gf	SPDT	10000000 Cycles	10000 Cycles	Chassis Mount	15.1 mm	0.594 "	-40 °C	120 °C	100 mA	0.6 mm	0.025 "	125 V	Lever, Simulated Roller	Quick Connect - 0.110" (2.8mm)	On-Mom	30 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 1.83

General part information

Switch SPDT Chassis Mount
