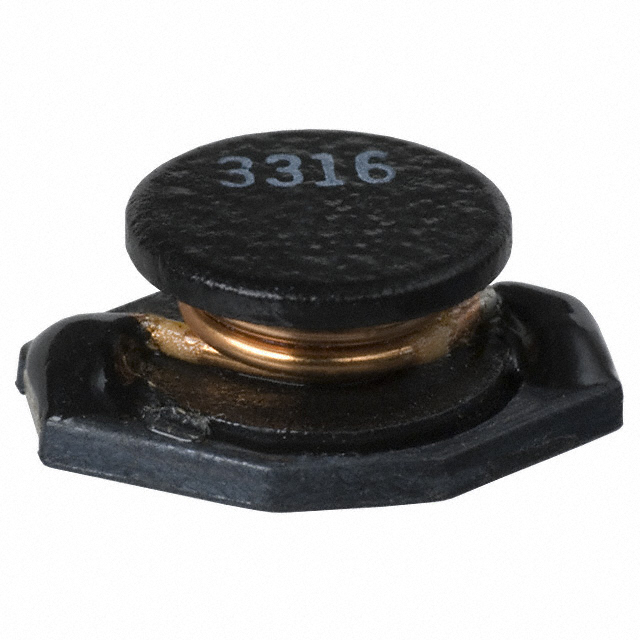

PM3316-6R8M-RC

Active

Bourns Inc.

FIXED IND 6.8UH 3.4A 30 MOHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PM3316-6R8M-RC

Active

Bourns Inc.

FIXED IND 6.8UH 3.4A 30 MOHM SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PM3316-6R8M-RC

Current - Saturation (Isat)	4.5 A
Current Rating (Amps)	3.4 A
DC Resistance (DCR)	30 mOhm
Frequency - Self Resonant	31 MHz
Height - Seated (Max) [Max] [z]	5.3 mm
Height - Seated (Max) [Max] [z]	0.209 in
Inductance	6.8 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Nonstandard
Q @ Freq	3 MHz, 50
Shielding	Unshielded
Size / Dimension [x]	12.7 mm
Size / Dimension [x]	0.5 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Tolerance	20 %
Type	Wirewound, Drum Core

PM3316 Series

Part	Current Rating (Amps)	Shielding	DC Resistance (DCR)	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Type	Mounting Type	Current - Saturation (Isat)	Inductance	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Frequency - Self Resonant	Q @ Freq
Bourns Inc. PM3316-151M	1 A	Unshielded	400 mOhm	20 %	105 ░C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	1 A	150 µH	Ferrite	5.3 mm	0.209 in	100 kHz	12.7 mm	10 mm	0.394 in	0.5 in
Bourns Inc. PM3316-331M-RC	0.55 A	Unshielded	1.15 Ohm	20 %	125 °C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	600 mA	330 µH	Ferrite	5.3 mm	0.209 in		12.7 mm	10 mm	0.394 in	0.5 in	4 MHz	33 50 kHz
Bourns Inc. PM3316-330M-RC	1.8 A	Unshielded	120 mOhm	20 %	125 °C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	2 A	33 µH	Ferrite	5.3 mm	0.209 in		12.7 mm	10 mm	0.394 in	0.5 in	14 MHz	1 MHz 25
Bourns Inc. PM3316-471M	0.5 A	Unshielded	1.27 Ohm	20 %	105 ░C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	500 mA		Ferrite	5.3 mm	0.209 in	100 kHz	12.7 mm	10 mm	0.394 in	0.5 in
Bourns Inc. PM3316-330M	2.1 A	Unshielded	100 mOhm	20 %	105 ░C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	2 A	33 µH	Ferrite	5.3 mm	0.209 in	100 kHz	12.7 mm	10 mm	0.394 in	0.5 in
Bourns Inc. PM3316-220M-RC	2 A	Unshielded	100 mOhm	20 %	125 °C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	2.5 A	22 µH	Ferrite	5.3 mm	0.209 in		12.7 mm	10 mm	0.394 in	0.5 in	18 MHz	3 MHz 40
Bourns Inc. PM3316-2R2M	6.1 A	Unshielded	12 mOhm	20 %	105 ░C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	7 A	2.2 µH	Ferrite	5.3 mm	0.209 in	100 kHz	12.7 mm	10 mm	0.394 in	0.5 in
Bourns Inc. PM3316-681M-RC	350 mA	Unshielded	2.6 Ohm	20 %	125 °C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	400 mA	680 µH	Ferrite	5.3 mm	0.209 in		12.7 mm	10 mm	0.394 in	0.5 in	3 MHz	50 kHz 57
Bourns Inc. PM3316-6R8M-RC	3.4 A	Unshielded	30 mOhm	20 %	125 °C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	4.5 A	6.8 µH	Ferrite	5.3 mm	0.209 in		12.7 mm	10 mm	0.394 in	0.5 in	31 MHz	3 MHz 50
Bourns Inc. PM3316-1R5M-RC	6.5 A	Unshielded	9 mOhm	20 %	125 °C	-55 °C	Nonstandard	Drum Core Wirewound	Surface Mount	8 A	1.5 µH	Ferrite	5.3 mm	0.209 in		12.7 mm	10 mm	0.394 in	0.5 in	95 MHz	3 MHz 50

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.00
		10	$ 0.82
		100	$ 0.68
	Digi-Reel®	1	$ 1.00
		10	$ 0.82
		100	$ 0.68
	Tape & Reel (TR)	500	$ 0.59
		1000	$ 0.56
		1500	$ 0.54
		2500	$ 0.52
		3500	$ 0.50
		5000	$ 0.49
		12500	$ 0.47

Description

General part information

PM3316 Series

6.8 µH Unshielded Drum Core, Wirewound Inductor 3.4 A 30mOhm Nonstandard
