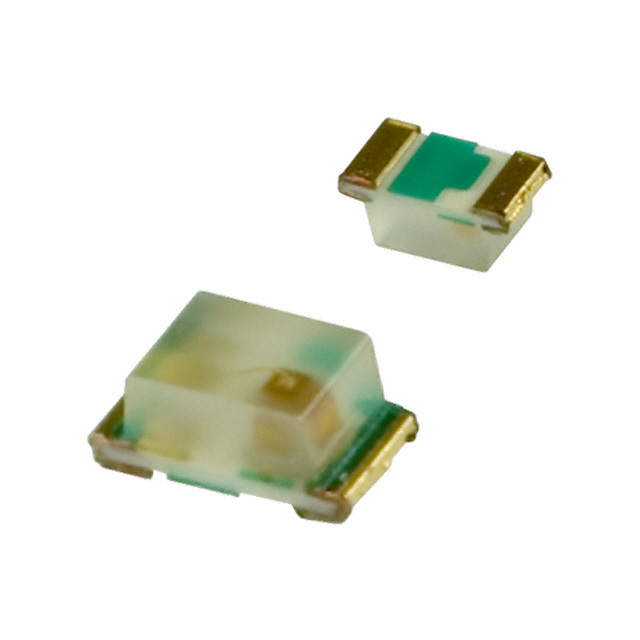

AA1111C-TR

Obsolete

Stanley Electric Co

LED ORANGE DIFFUSED 1608 SMD

Search across all available documentation for this part.

Obsolete

Stanley Electric Co

LED ORANGE DIFFUSED 1608 SMD

Technical Specifications

Parameters and characteristics for this part

LED ORANGE DIFFUSED 1608 SMD

Part	Millicandela Rating	Lens Transparency	Size / Dimension [x]	Size / Dimension [y]	Wavelength - Dominant	Lens Size [y]	Lens Size [x]	Mounting Type	Lens Style	Lens Color	Supplier Device Package	Package / Case	Configuration	Height (Max) [Max] [z]	Wavelength - Peak	Current - Test	Voltage - Forward (Vf) (Typ)	Viewing Angle
Stanley Electric Co AA1111C-TR	3.4 mcd	Diffused	1.6 mm	0.8 mm	606 nm	0.8 mm	1.1 mm	Surface Mount	Rectangle with Flat Top	White	1608	0603 (1608 Metric)	Standard	0.8 mm	605 nm	20 mA	2.2 V	149 °, 153 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Orange 606nm LED Indication - Discrete 2.2V 0603 (1608 Metric)

Technical documentation and resources

No documents available
