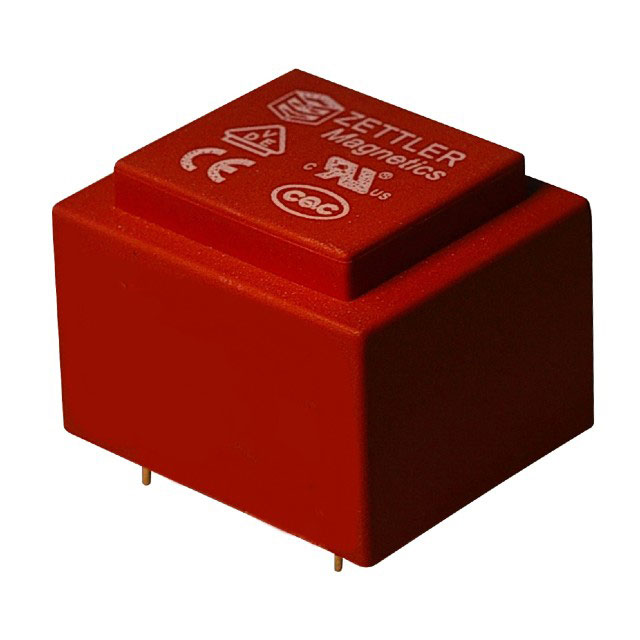

BV301S06010-ZU
ActiveZettler Magnetics
PWR XFMR LAMINATED 1VA TH
BV301S06010-ZU
ActiveZettler Magnetics
PWR XFMR LAMINATED 1VA TH
Description
General part information
BV301S06010-ZU
PWR XFMR LAMINATED 1VA TH
Technical Specifications
Parameters and characteristics for this part
| Specification | BV301S06010-ZU |
|---|---|
| Center Tap | No |
| Current - Output (Max) | 166 mA |
| Height - Seated (Max) | 22.3 mm |
| Mounting Type | Through Hole |
| Power - Max | 1 VA |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Single |
| Size / Dimension Length | 32.8 mm |
| Size / Dimension Width | 27.8 mm |
| Termination Style | PC Pin |
| Type | Laminated Core |
| Voltage - Isolation | 2800 V |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 6 V |
