Description
General part information
11/1408

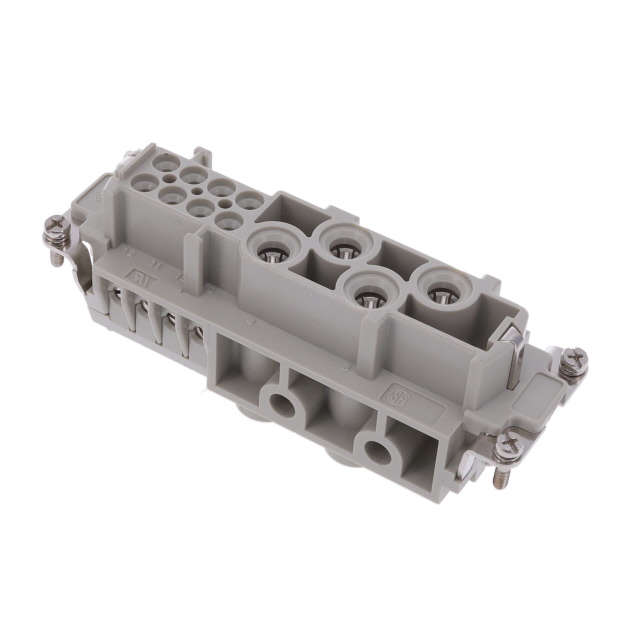

Female Insert 12 (8 + 4 Power) Position Screw
Technical Specifications
Parameters and characteristics for this part
| Specification | 11/1408 |
|---|---|
| Connector Type | Insert |
| Contact Finish | Silver |
| Contact Material | Copper Alloy |
| Current Rating Options | 80A, 16A |
| Gender | Female |
| Housing Material | Glass Filled, Thermoplastic |
| Number of Positions (Normal) | 8 |
| Number of Positions (Power) | 4 |
| Number of Positions (Total) | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | HB24 |
| Termination Style | Screw |
| Voltage Rating | 600 V |
