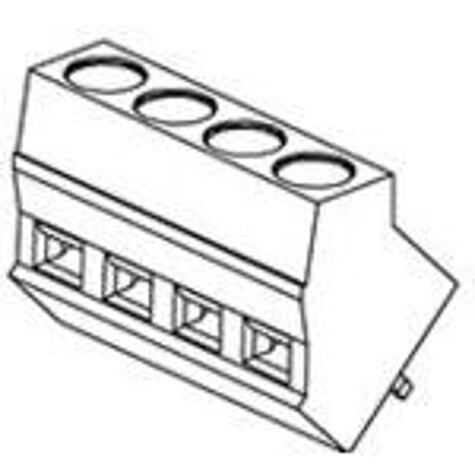

Specification	0395434316

Clamp Material - Plating	Brass
Color	Black
Contact Material	Brass
Current	10 A
Housing Material	Nylon 6/6, Polyamide, PA66
Mating Orientation (Angle)	45 °
Mating Orientation (Angle) (Alternate)	135 °
Mating Orientation (Description)	Angle with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Plating	Tin Plated
Positions Per Level	16
Screw Material	Steel
Torque - Screw	0.34 Nm
Voltage	300 V
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	14 AWG
Wire Termination	Rising Cage Clamp, Screw

039543 Series

...

Part	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Plating	Housing Material	Torque - Screw	Screw Material	Clamp Material - Plating	Mating Orientation	Wire Termination	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Mounting Type	Pitch	Current	Positions Per Level	Features	Number of Levels	Voltage	Mating Orientation (Angle)	Mating Orientation (Description)	Mating Orientation (Angle) (Alternate)
Molex 0395435023	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.51 Nm	Steel	Brass	Horizontal with Board	Rising Cage Clamp Screw	Black	14 AWG	22 AWG	Through Hole	0.197 in	15 A	23	Positions Stamped	1	300 V
Molex 0395430615	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.34 Nm	Steel	Brass	Horizontal with Board	Leaf Spring Screw Wire Guard	Black	14 AWG	22 AWG	Through Hole	0.197 in	10 A	15		1	300 V
Molex 0395432223	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.34 Nm	Steel			Leaf Spring Screw Wire Guard	Black	14 AWG	24 AWG	Through Hole	0.197 in	10 A	23	Positions Stamped	1	300 V	45 °	Angle with Board	135 °
Molex 0395437123	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.4 Nm	Steel	Brass	Vertical with Board	Rising Cage Clamp Screw	Black	16 AWG	24 AWG	Through Hole	0.197 in	10 A	23	Interlocking (Side) Positions Stamped	1	300 V
Molex 0395431020	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.34 Nm	Steel		Horizontal with Board	Leaf Spring Screw Wire Guard	Black	14 AWG	24 AWG	Through Hole	0.197 in	10 A	20	Positions Stamped	1	300 V
Molex 0395437103	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.4 Nm	Steel	Brass	Vertical with Board	Rising Cage Clamp Screw	Black	16 AWG	24 AWG	Through Hole	0.197 in	10 A	3	Interlocking (Side) Positions Stamped	1	300 V
Molex 0395437004	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.51 Nm	Steel	Brass	Horizontal with Board	Rising Cage Clamp Screw	Black	14 AWG	22 AWG	Through Hole	0.197 in	15 A	4	Positions Stamped	1	300 V
Molex 0395437106	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.4 Nm	Steel	Brass	Vertical with Board	Rising Cage Clamp Screw	Black	16 AWG	24 AWG	Through Hole	0.197 in	10 A	6	Interlocking (Side) Positions Stamped	1	300 V
Molex 0395432013	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.34 Nm	Steel		Horizontal with Board	Leaf Spring Screw Wire Guard	Black	14 AWG	24 AWG	Through Hole	0.197 in	10 A	13	Positions Stamped	1	300 V
Molex 0395431015	-40 °C	105 °C	Brass	Tin Plated	Nylon 6/6 PA66 Polyamide	0.34 Nm	Steel		Horizontal with Board	Leaf Spring Screw Wire Guard	Black	14 AWG	24 AWG	Through Hole	0.197 in	10 A	15	Positions Stamped	1	300 V
