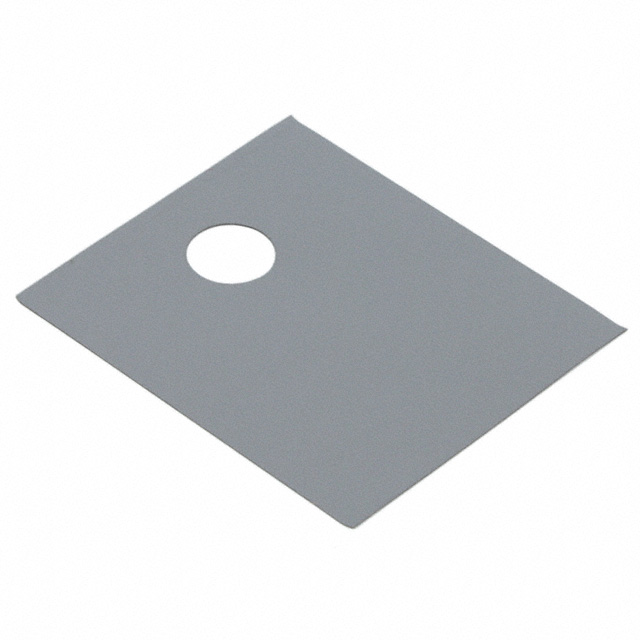

DC0011/15-TI900-0.12-0

Active

t-Global Technology

THERM PAD 21.84MMX18.79MM WHT

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 21.84MMX18.79MM WHT

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 21.84MMX18.79MM W/ADH

Part	Thermal Conductivity	Color	Adhesive	Shelf Life	Type	Shape	Thickness [custom]	Thickness [custom]	Usage	Outline [x]	Outline [y]	Thickness [x]	Thickness [x]	Material	Backing, Carrier	Thickness	Thickness	Shelf Life Start
t-Global Technology DC0011/15-TG-A373F-0.25-2A	1.4 W/m-K	Yellow	Adhesive - Both Sides	12 Months	Die-Cut Pad, Sheet	Rectangular	0.254 mm	0.01 in	TO-220	21.84 mm	18.79 mm
t-Global Technology DC0011/15-TI900-0.12-0	1.8 W/m-K	White		24 Months	Die-Cut Pad, Sheet	Rectangular			TO-220	21.84 mm	18.79 mm	0.005 in	0.127 mm	Silicone	Viscose
t-Global Technology DC0011/15-TG-A482K-0.1-0	2.3 W/m-K	Red		24 Months	Die-Cut Pad, Sheet	Rectangular			TO-220	21.84 mm	18.79 mm			Silicone		0.1 mm	0.0039 in	Date of Purchase
t-Global Technology DC0011/15-TI900-0.12-2A	1.8 W/m-K	White	Adhesive - Both Sides	24 Months	Die-Cut Pad, Sheet	Rectangular			TO-220	21.84 mm	18.79 mm	0.005 in	0.127 mm	Silicone	Viscose
t-Global Technology DC0011/15-TG-A486G-0.3-2A	6 W/m-K	Gray	Adhesive - Both Sides	12 Months	Die-Cut Pad, Sheet	Rectangular	0.305 mm	0.012 "	TO-220	21.84 mm	18.79 mm							Date of Purchase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
