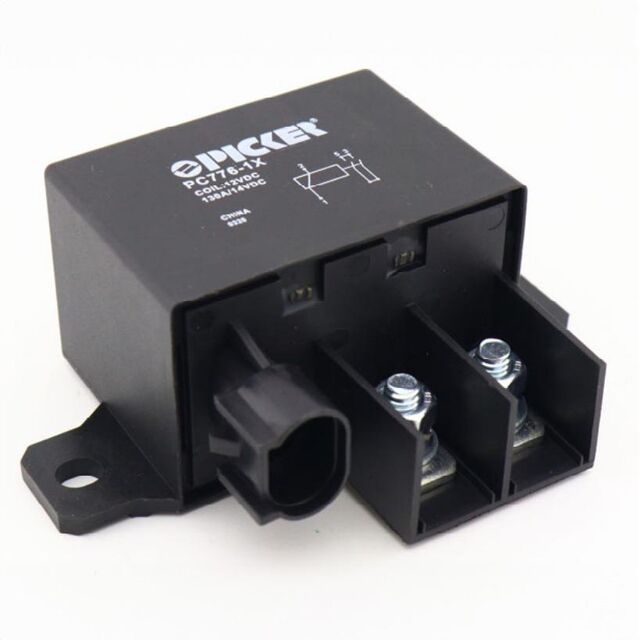

PC776-1X-12S-R-X
ActivePicker Components
RELAY AUTOMOTIVE SPST 130A 12V
PC776-1X-12S-R-X
ActivePicker Components
RELAY AUTOMOTIVE SPST 130A 12V
Description
General part information
PC776-1X-12S-R-X
RELAY AUTOMOTIVE SPST 130A 12V
Technical Specifications
Parameters and characteristics for this part
| Specification | PC776-1X-12S-R-X |
|---|---|
| Coil Current | 324.3 mA |
| Coil Power | 3.9 W |
| Coil Resistance | 37 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VAC |
| Contact Form | Form, X, 1, SPST-NO, DM |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 130 A |
| Features | Fully, Sealed, Resistor |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 7.2 VDC |
| Must Release Voltage | 1.2 V |
| Operate Time | 10 ms |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Release Time | 10 ms |
| Switching Voltage DC (Max) | 40 VDC |
| Termination Style | Screw Terminal |
