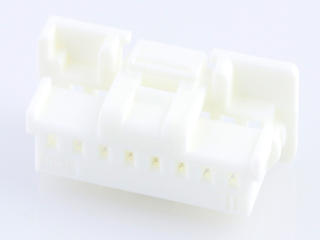

Specification	5601230800

Color	White
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Non-Gendered
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	1
Pitch	0.079 in

560123 Series

DuraClik ISL Wire-to-Board Receptacle Housing, Single Row, White, 3 Circuits

Part	Note	Contact Termination	Mounting Type	Number of Rows	Pitch	Connector Type	Fastening Type	Number of Positions	Insulation Material	Color	Contact Type	Operating Temperature (Max)	Operating Temperature (Min)
Molex 5601230200	Contacts Not Included	Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	2	Glass Filled Polybutylene Terephthalate (PBT)	White	Non-Gendered
Molex 5601230900		Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	9	Polybutylene Terephthalate (PBT)	White	Female Socket	130 °C	-40 °C
Molex 5601231200	Contacts Not Included	Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	12	Glass Filled Polybutylene Terephthalate (PBT)	White	Non-Gendered	125 °C	-40 °C
Molex 5601230801		Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	8	Polybutylene Terephthalate (PBT)	Black	Female Socket	130 °C	-40 °C
Molex 5601230804		Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	8	Polybutylene Terephthalate (PBT) Polyester	Blue	Female Socket	130 °C	-40 °C
Molex 5601230204		Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	2	Polybutylene Terephthalate (PBT)	Blue	Female Socket	130 °C	-40 °C
Molex 5601230401	Contacts Not Included	Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	4	Polybutylene Terephthalate (PBT)	Black	Female Socket	125 °C	-40 °C
Molex 5601230301	Contacts Not Included	Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	3	Polybutylene Terephthalate (PBT) Polyester	Black	Female Socket	130 °C	-40 °C
Molex 5601230201		Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	2	Polybutylene Terephthalate (PBT)	Black	Female Socket	130 °C	-40 °C
Molex 5601230202		Crimp	Free Hanging (In-Line)	1	0.079 in	Receptacle	Latch Holder	2	Polybutylene Terephthalate (PBT) Polyester	Red	Female Socket	130 °C	-40 °C
