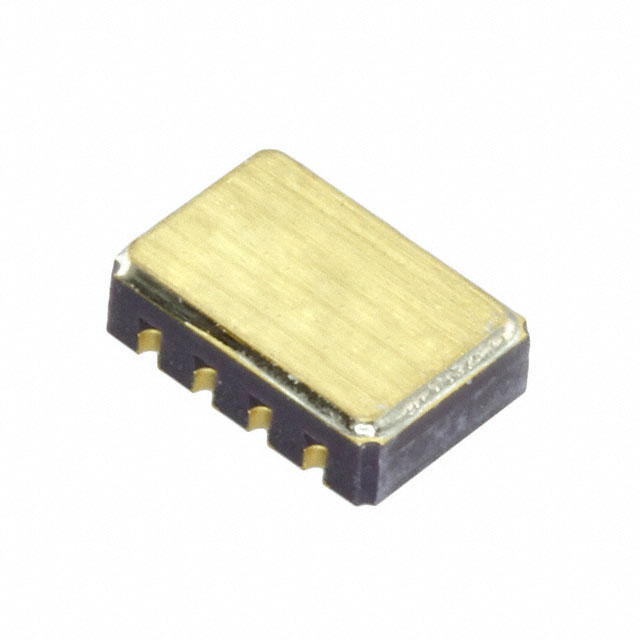

OLS2449
ActiveSkyworks Solutions Inc.
OPTOISO 1.5KV 40MA SMT
OLS2449
ActiveSkyworks Solutions Inc.
OPTOISO 1.5KV 40MA SMT
Description
General part information
OLS2449
Optoisolator Transistor Output 1500VDC 2 Channel 8-SMT
Technical Specifications
Parameters and characteristics for this part
| Specification | OLS2449 |
|---|---|
| Current - DC Forward (If) (Max) | 40 mA |
| Current - Output / Channel | 50 mA |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Output Type | Transistor |
| Package / Case | 8-DFN |
| Package Name | 8-SMT |
| Rise / Fall Time (Max) | 25 µs |
| Rise / Fall Time (Typ) | 25 µs |
| Voltage - Forward (Vf) (Max) | 1.7 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output (Max) | 65 V |
