110-83-640-41-005101

Active

PRECI-DIP SA

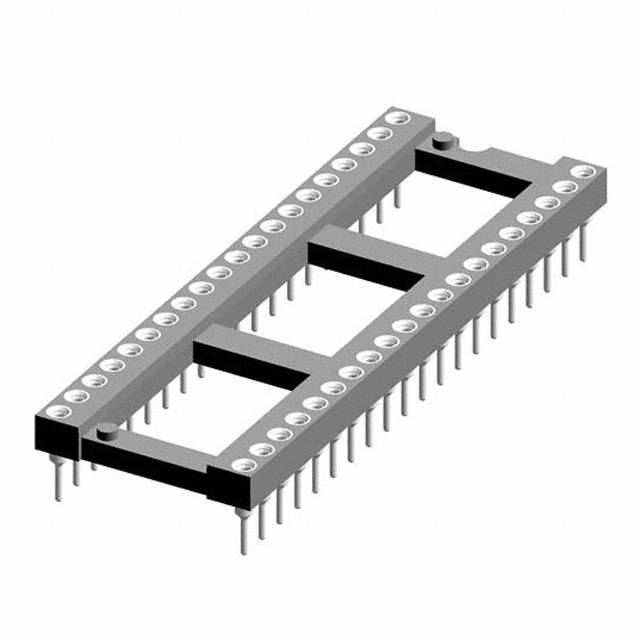

CONN IC DIP SOCKET 40POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

110-83-640-41-005101

Active

PRECI-DIP SA

CONN IC DIP SOCKET 40POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	110-83-640-41-005101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Contact Resistance	10 mOhm
Current Rating (Amps)	1 A
Features	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	40
Number of Positions or Pins (Grid) [custom]	20
Number of Positions or Pins (Grid) [custom]	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Type	DIP
Type	0.6 in
Type	15.24 mm

110-83 Series

Part	Termination	Pitch - Post	Pitch - Post	Termination Post Length	Termination Post Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material - Mating	Mounting Type	Number of Positions or Pins (Grid)	Features	Contact Resistance	Pitch - Mating	Pitch - Mating	Type	Type	Type	Contact Material - Post [custom]	Housing Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish - Mating	Material Flammability Rating	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
PRECI-DIP SA 110-83-320-41-105191	Solder	2.54 mm	0.1 in	0.118 in	3 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Surface Mount	20	Open Frame	10 mOhm	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0
PRECI-DIP SA 110-83-324-41-001151	Solder	2.54 mm	0.1 in	0.125 in	3.18 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Through Hole	24	No Center Bar Open Frame	10 mOhm	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0
PRECI-DIP SA 110-83-652-41-005101	Solder	2.54 mm	0.1 in			29.5 Áin	0.75 Ám	Beryllium Copper	Through Hole		Open Frame	10 mOhm	0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0
PRECI-DIP SA 110-83-304-41-105101	Solder	2.54 mm	0.1 in	0.118 in	3 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Surface Mount		Open Frame	10 mOhm	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0	4
PRECI-DIP SA 110-83-964-41-001101	Solder	2.54 mm	0.1 in	0.125 in	3.18 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Through Hole	64	Open Frame	10 mOhm	0.1 in	2.54 mm	0.9 in	22.86 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0
PRECI-DIP SA 110-83-632-41-105191	Solder	2.54 mm	0.1 in	0.118 in	3 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Surface Mount		Open Frame	10 mOhm	0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0		2 x 16	32
PRECI-DIP SA 110-83-314-41-001101	Solder	2.54 mm	0.1 in	0.125 in	3.18 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Through Hole	14	Open Frame	10 mOhm	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0
PRECI-DIP SA 110-83-306-41-001101	Solder	2.54 mm	0.1 in	0.125 in	3.18 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Through Hole		Open Frame	10 mOhm	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0				2	6	3
PRECI-DIP SA 110-83-642-41-005101	Solder	2.54 mm	0.1 in			29.5 Áin	0.75 Ám	Beryllium Copper	Through Hole	42	Open Frame	10 mOhm	0.1 in	2.54 mm	0.6 in	15.24 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0
PRECI-DIP SA 110-83-318-41-105191	Solder	2.54 mm	0.1 in	0.118 in	3 mm	29.5 Áin	0.75 Ám	Beryllium Copper	Surface Mount	18	Open Frame	10 mOhm	0.1 in	2.54 mm	0.3 "	7.62 mm	DIP	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	1 A	-55 °C	125 °C	Tin	Gold	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	630	$ 3.12

Description

General part information

110-83 Series

40 (2 x 20) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole
