ADP-65TW AC
UnknownDelta Electronics

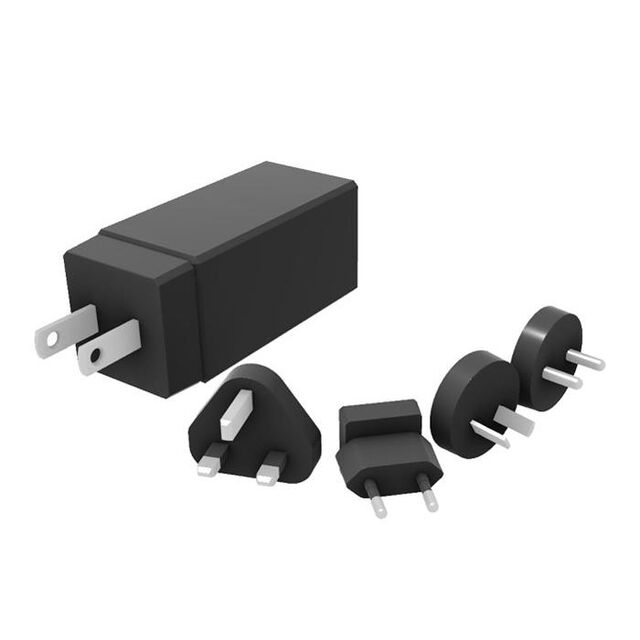

65W / USB-C ADAPTER - WW PLUGS
ADP-65TW AC
UnknownDelta Electronics
65W / USB-C ADAPTER - WW PLUGS
Description
General part information
ADP-65TW AC
5V, 9V, 15V, 20V 65 W AC/DC External Wall Mount Adapter Multi-Blade (Included) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | ADP-65TW AC |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cULus, PSE |
| Current - Output (Max) Options | 3.25A, 3A |
| Efficiency | Level VI, CoC Tier 2 |
| Form | Wall Mount (Class II), Wall Mount |
| Input Connector | Multi-Blade (Included) |
| Input Type | Multi-Blade (Included) |
| No Load Power Consumption | 150 mW |
| Operating Temperature (Max) | 35 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | USB C Power Delivery (PD) |
| Power (Watts) | 65 W |
| Region Utilized | International |
| Size / Dimension Height | 2.36 in |
| Size / Dimension Length | 1.2 in |
| Size / Dimension Width | 1.2 in |
| Standard Number | 62368-1 |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 9V, 15V, 20V, 5V |
| Voltage - Output | 15 V, 5 VDC, 9 V, 20 V |
| Voltage - Output (1) | 5 V |
| Voltage - Output (2) | 9 V |
| Voltage - Output (3) | 15 V |
| Voltage - Output (4) | 20 V |
