FMC00681-60
ActiveFairview Microwave
CBL ASSY SMAPLUG-TYPE NPLUG 60
FMC00681-60
ActiveFairview Microwave
CBL ASSY SMAPLUG-TYPE NPLUG 60
Description
General part information
FMC00681-60

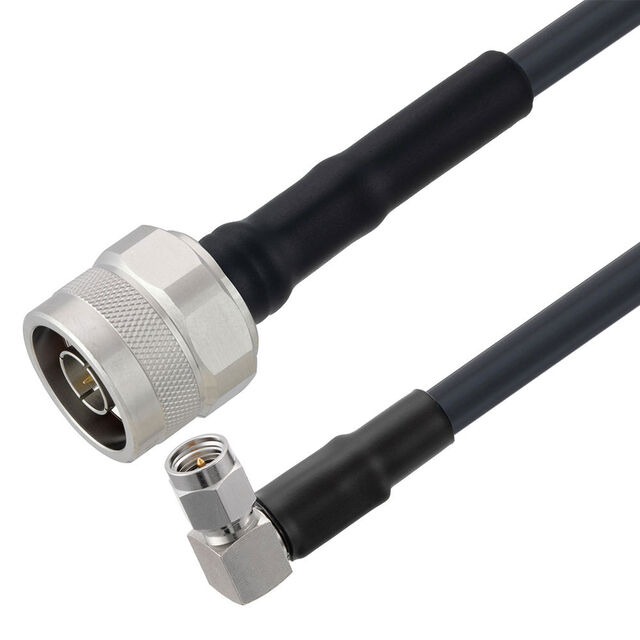

Cable Assembly Coaxial SMA to N-Type LMR 240 60.0" (1.5m) 5.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | FMC00681-60 |
|---|---|
| 1st Connector | SMA Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR |
| Cable Type Size | 240 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 1524 mm |
| Length (ft) | 5 ft |
| Overall Impedance | 50 Ohms |
| Style | SMA, N-Type |
