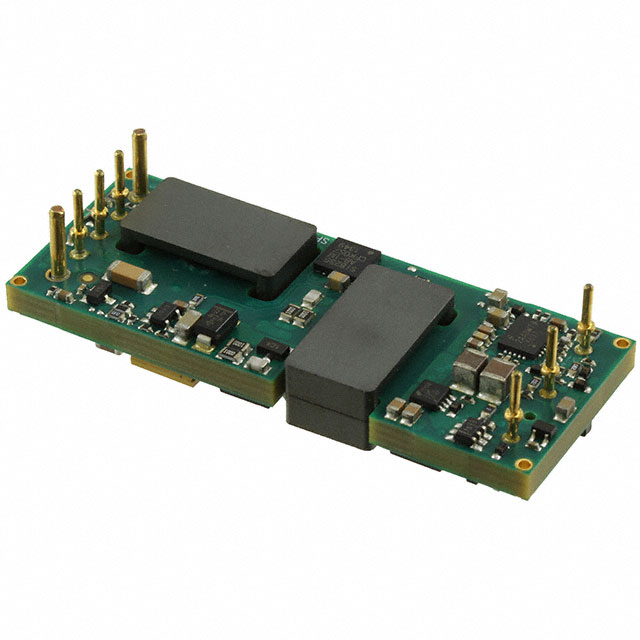

UWE-12/10-Q12P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 120W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UWE-12/10-Q12P-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 12V 120W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UWE-12/10-Q12P-C | UWE-12 Series |
|---|---|---|
| - | - | |
| Applications | ITE (Commercial) | ITE (Commercial) |
| Control Features | Active High, Enable | Active Low, Enable, Active High |
| Current - Output (Max) [Max] | 10 A | 6 - 10 A |
| Efficiency | 90 % | 90 - 91.5 % |
| Features | OCP, UVLO, OTP, Remote On/Off, SCP, OVP | OCP, UVLO, OTP, Remote On/Off, SCP, OVP |
| Mounting Type | Through Hole | Through Hole |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 8-DIP Module, 1/8 Brick | 8-DIP Module, 1/8 Brick |
| Power (Watts) | 120 W | 72 - 120 W |
| Size / Dimension [x] | 2.3 in | 2.3 in |
| Size / Dimension [x] | 58.4 mm | 58.4 mm |
| Size / Dimension [y] | 0.9 " | 0.9 " |
| Size / Dimension [y] | 22.9 mm | 22.9 mm |
| Size / Dimension [z] | 8.6 mm | 8.6 mm |
| Size / Dimension [z] | 0.34 in | 0.34 in |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V | 36 - 75 V |
| Voltage - Input (Min) [Min] | 9 V | 9 - 18 V |
| Voltage - Isolation | 1.5 kV | 1.5 - 2250 kV |
| Voltage - Output 1 | 12 V | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 68.72 | |
| 5 | $ 68.31 | |||
| 10 | $ 67.88 | |||
| 25 | $ 67.16 | |||
| 50 | $ 65.66 | |||
| 100 | $ 62.45 | |||
UWE-12 Series
DC DC CONVERTER 12V 120W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Input (Min) [Min] | Number of Outputs | Applications | Power (Watts) | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Voltage - Output 1 | Package / Case | Features | Type | Control Features | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Isolation | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. UWE-12/10-Q12N-C | 85 °C | -40 °C | Through Hole | 9 V | 1 | ITE (Commercial) | 120 W | 36 V | 10 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active Low, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 1.5 kV | |
Murata Power Solutions Inc. UWE-12/6-Q48P-C | 85 °C | -40 °C | Through Hole | 18 V | 1 | ITE (Commercial) | 72 W | 75 V | 6 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active High, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 2250 VDC | 91 % |
Murata Power Solutions Inc. UWE-12/6-Q48PB-C | 85 °C | -40 °C | Through Hole | 18 V | 1 | ITE (Commercial) | 72 W | 75 V | 6 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active High, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 2250 VDC | 91 % |
Murata Power Solutions Inc. UWE-12/10-Q12P-C | 85 °C | -40 °C | Through Hole | 9 V | 1 | ITE (Commercial) | 120 W | 36 V | 10 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active High, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 1.5 kV | 90 % |
Murata Power Solutions Inc. UWE-12/10-Q48PB-C | ||||||||||||||||||||||
Murata Power Solutions Inc. UWE-12/10-Q48P-C | 85 °C | -40 °C | Through Hole | 18 V | 1 | ITE (Commercial) | 120 W | 75 V | 10 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active High, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 2250 VDC | 91.5 % |
Murata Power Solutions Inc. UWE-12/6-Q48N-C | 85 °C | -40 °C | Through Hole | 18 V | 1 | ITE (Commercial) | 72 W | 75 V | 6 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active Low, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 2250 VDC | 91 % |
Murata Power Solutions Inc. UWE-12/6-Q12N-C | 85 °C | -40 °C | Through Hole | 9 V | 1 | ITE (Commercial) | 72 W | 36 V | 6 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active Low, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 1.5 kV | 91.5 % |
Murata Power Solutions Inc. UWE-12/10-Q48PB-C | 85 °C | -40 °C | Through Hole | 18 V | 1 | ITE (Commercial) | 120 W | 75 V | 10 A | 12 V | 1/8 Brick, 8-DIP Module | OCP, OTP, OVP, Remote On/Off, SCP, UVLO | Isolated Module | Active High, Enable | 2.3 in | 0.9 " | 8.6 mm | 0.34 in | 22.9 mm | 58.4 mm | 2250 VDC | 91.5 % |
Murata Power Solutions Inc. UWE-12/6-Q48N-C |
Description
General part information
UWE-12 Series
Isolated Module DC DC Converter 1 Output 12V 10A 9V - 36V Input
