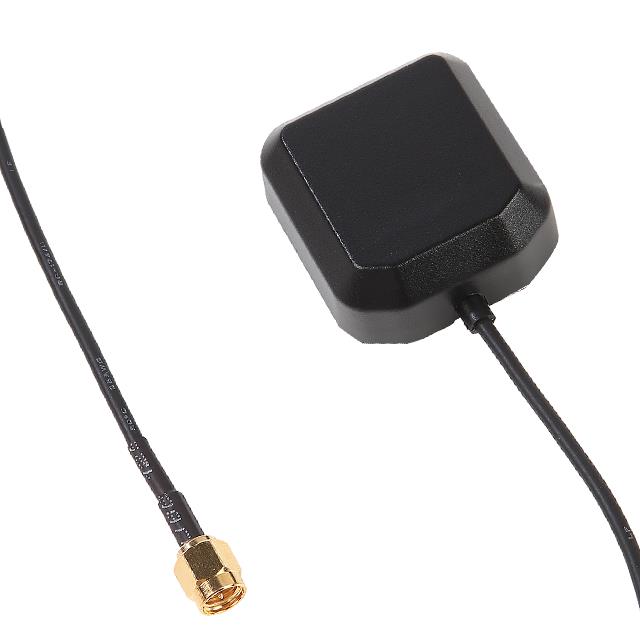

ATGGBL54138M-SMA-3
RF ANTENNA Beidou, Galileo, GLONASS, GPS Module SMA Male Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | ATGGBL54138M-SMA-3 |
|---|---|
| Antenna Type | Module |
| Applications | Galileo, GLONASS, BEIDOU, GPS |
| Features | Cable, Filter, 3m, LNA |
| Frequency (Center/Band) | 1.176GHz, 1.575GHz, 1.561GHz, 1.602GHz |
| Frequency (Center/Band) - 1 | 1.176 GHz |
| Frequency (Center/Band) - 2 | 1.561 GHz |
| Frequency (Center/Band) - 3 | 1.575 GHz |
| Frequency (Center/Band) - 4 | 1.602 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Frequency Range (Band 1) Maximum | 1.186 GHz |
| Frequency Range (Band 1) Minimum | 1.166 GHz |
| Frequency Range (Band 2) Maximum | 1.563 GHz |
| Frequency Range (Band 2) Minimum | 1.559 GHz |
| Frequency Range (Band 3) Maximum | 1.576 GHz |
| Frequency Range (Band 3) Minimum | 1.574 GHz |
| Frequency Range (Band 4) Maximum | 1.61 GHz |
| Frequency Range (Band 4) Minimum | 1.594 GHz |
| Gain | 2 dBi, 0 dBi, 3.5 dBi, 1 dBi |
| Height (Max) | 0.642 in |
| Mounting Type | Magnetic |
| Number of Bands | 4 |
| Return Loss | -5.39dB, -4.57dB, -10.91dB, -29.04dB, -27.04dB, -16.39dB |
| Return Loss | -27.04 dB, -5.39 dB, -10.91 dB, -16.39 dB, -29.04 dB, -4.57 dB |
| RF Family/Standard | Navigation |
| Termination Type | SMA Male |
| VSWR | 2 |
