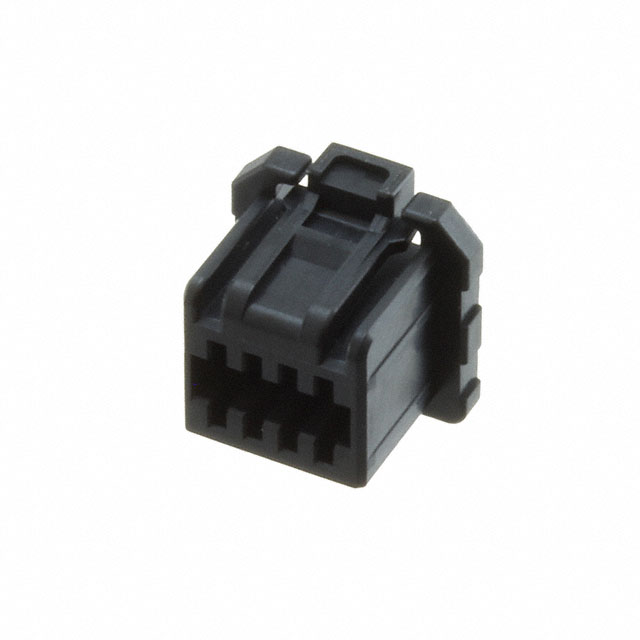

Specification	5054320801

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Holder
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.049 in

505432 Series

Part	Note	Color	Pitch	Fastening Type	Insulation Material	Mounting Type	Number of Rows	Connector Type	Number of Positions	Contact Termination	Contact Type	Operating Temperature (Min)	Operating Temperature (Max)
Molex 5054324201	Contacts Not Included	Black	0.049 in	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	42	Crimp	Female Socket	-40 °C	105 °C
Molex 5054322802
Molex 5054324001		Black	0.049 in	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	40	Crimp	Female Socket	-40 °C	105 °C
Molex 5054322000		Natural	0.049 in	Locking Ramp	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)	2	Receptacle	20	Crimp	Female Socket	-40 °C	105 °C
Molex 5054320802
Molex 5054322600		Natural	0.049 in	Locking Ramp	Polybutylene Terephthalate (PBT) Polyester	Free Hanging (In-Line)	2	Receptacle	26	Crimp	Female Socket	-40 °C	105 °C
Molex 5054323801		Black	0.049 in	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	38	Crimp	Female Socket	-40 °C	105 °C
Molex 5054322602
Molex 5054323804
Molex 5054321601		Black	0.049 in	Latch Holder	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	2	Receptacle	16	Crimp	Female Socket	-40 °C	105 °C
